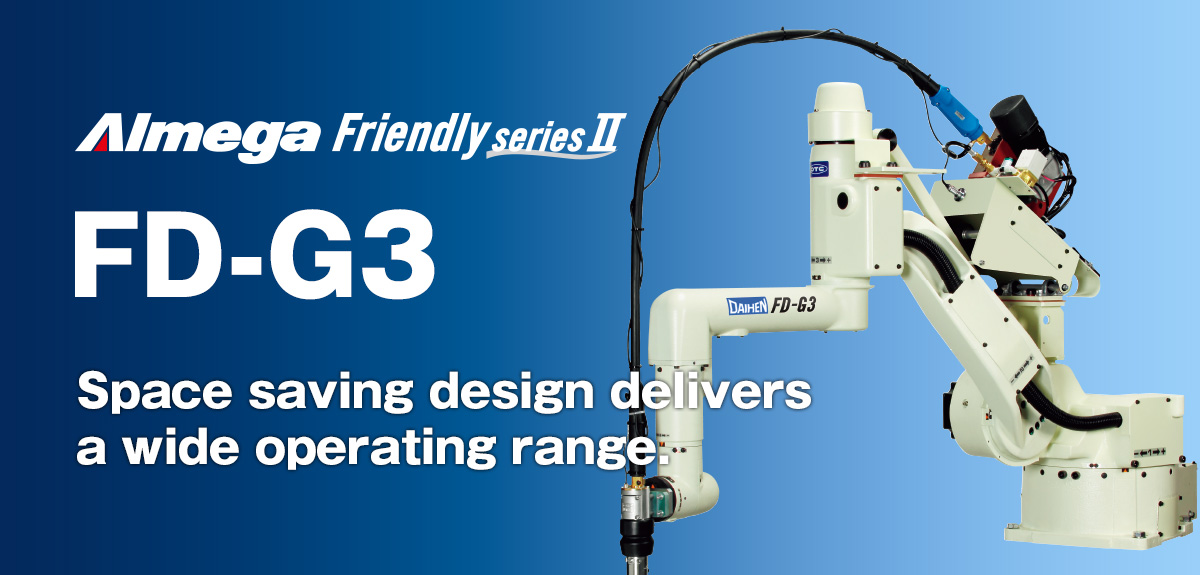

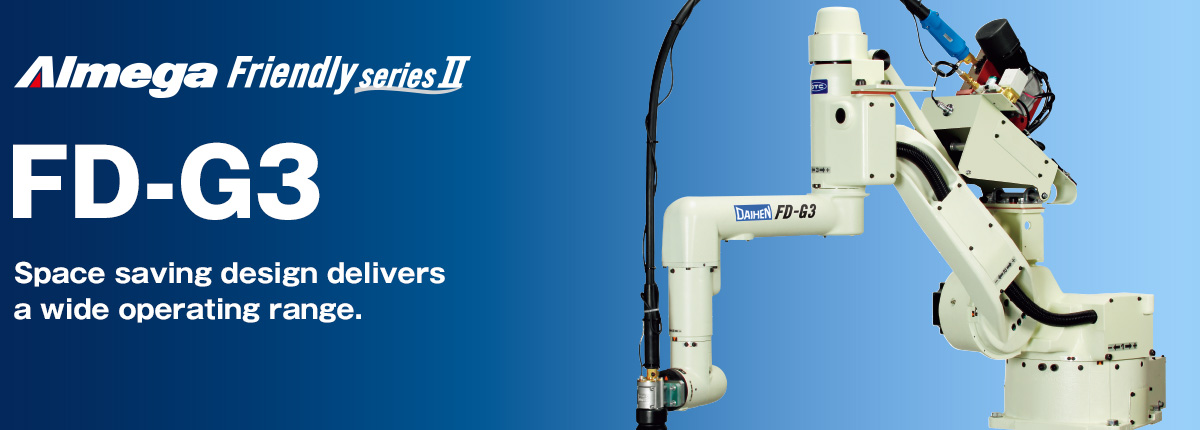

AImega Frendly series FD-G3 Space saving design delivers a wide operating range. AImega Frendly series FD-G3 Space saving design delivers a wide operating range.

Main features

  • Supports installation close to a wall or shelf-mounted.

    Restricted range of rear motion supports installation close to a wall or shelf-mounting.

  • Extensive operating range.

    Extensive operating range
    combined with a compact body.

Video

  • Video

    A horizontal articulated robot cuts steel I-beam.

Specifications

Item
Specifications
Model name
NG3
Structure
Vertical articulated type
Number of Axes
5
Wrist payload
3kg
Weight
144kg
Load of Upper Arm
40kg(*)

(Note) The end effect is when the maximum payload capacity is loaded.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
