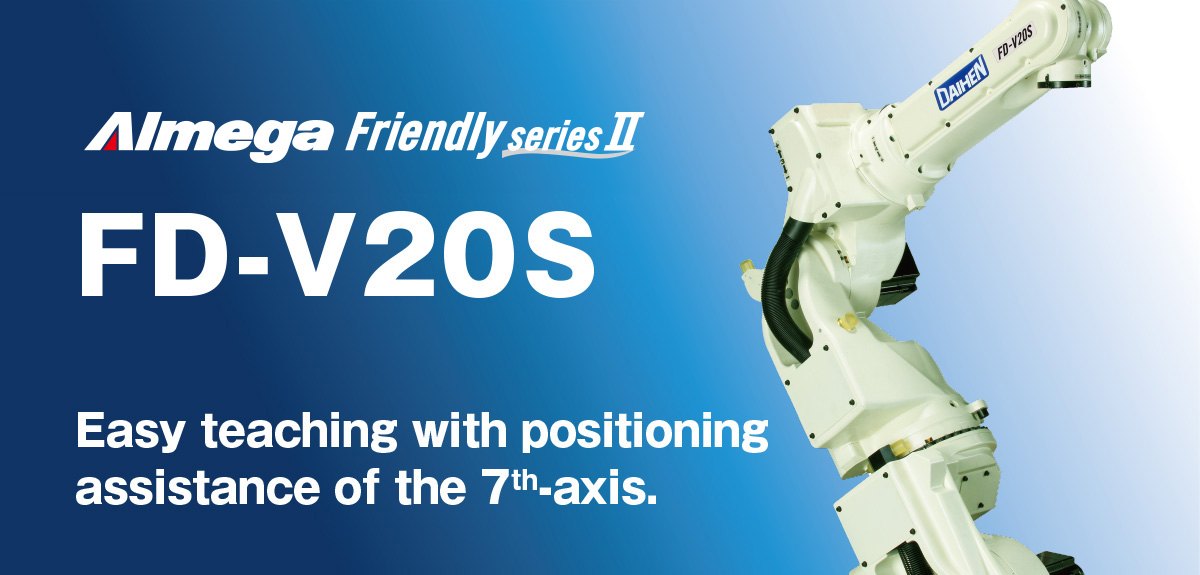

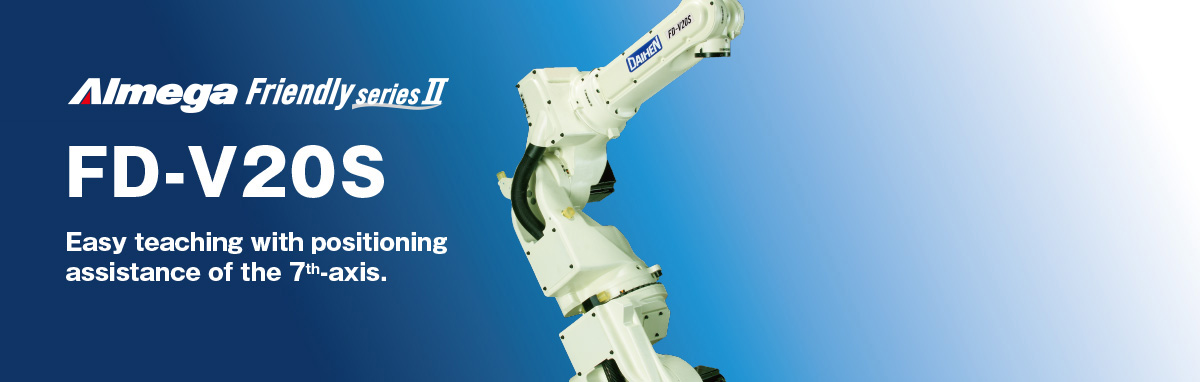

AImega Frendly series FD-V20S Easy teaching with positioning assistance of the 7th-axis. AImega Frendly series FD-V20S Easy teaching with positioning assistance of the 7th-axis.

Main features

  • Simple manual operation realized

    Teaching with competing 7-axis robots is cumbersome. Our simplified teaching maintains torch attitude using our exclusive Synchro-motion technology.

  • Suited for medium load material handling and welding.

    Payload 20kg. Well-suited for medium load material handling and welding.

Video

  • Video

    Multi-arm coordinated welding with our 7-axis robots.

  • Video

    High-speed sealing system

Specifications

Item
Specifications
Model name
N20S
Structure
Vertical articulated type
Number of Axes
7
Wrist payload
20kg
Weight
321kg
Load of Upper Arm
20kg(*)

(Note) The end effect is when the maximum payload capacity is loaded.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
