Arc welding

  • Video

    Full circumferential welding with a 7-axis robot. Flexibility of the 7-axis robot to deliver whole circumference welding without the need for additional positioners.

  • Video

    Pipe periphery welding with a cold tandem welding system In ordinary MAG welding the molten pool is cooled by inserting a filler wire to minimize distortion via a low heat input.

  • Video

    Synchro-feed welding system1 Ultra-thin sheet soft steel t0.6mm low heat input butt welding

  • Video

    Synchro-feed welding system2 Ultra-low spatter welding of soft steel (t3.2mm, lap fillets).

  • Video

    Synchro-feed welding system3 Ultra-low spatter welding of soft steel (t12.0mm, fillet with weaving)

  • Video

    Synchro-feed welding system4 Ultra-low spatter welding of stainless steel (t2.0mm, lap fillet)

  • Video

    Synchro-feed welding system5 Ultra-low spatter welding of soft steel (t2.0mm, downward fillet)

  • Video

    Synchro-feed welding system6 Ultra-low spatter welding of high tension steel (t2.0mm, lap fillet)

  • Video

    Synchro-feed welding system7 Ultra-low spatter welding of soft steel (t1.6mm, lap fillet, GAP 0.5mm)

  • Video

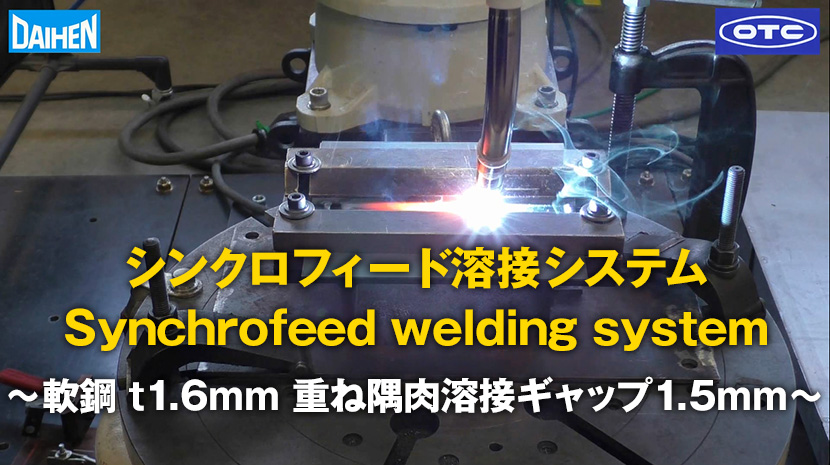

    Synchro-feed welding system8 Ultra-low spatter welding of soft steel (t1.6mm, lap fillet, GAP 1.5mm)

  • Video

    Synchro-feed welding system9 Ultra-low spatter welding of soft steel (t1.6mm, fillet, GAP 0.5mm)

  • Video

    Synchro-feed welding system10 Ultra-low spatter welding of soft steel (t1.6mm, fillet, GAP 1.5mm)

  • Video

    Synchro-feed welding system11 Ultra-low spatter welding of stainless steel (t0.8mm, periphery)

  • Video

    Synchro-feed welding system12 Ultra-low spatter, high-speed welding of stainless steel (t0.8mm, butt)

  • Video

    Synchro-feed welding system13 Ultra-low spatter welding of Zinc plate (t2.3mm, lap fillet (CO2))

  • Video

    Synchro-feed welding system14 Ultra-low spatter welding of Zinc plate (t2.3mm, lap fillet (MAG))

  • Video

    Synchro-feed welding system Ultra-low spatter welding resulting in 98% reduction of weld spatter.

Material handling & transport

  • Video

    7-axis robot performance videoThe flexibility of a 7-axis robot makes high density installations posibile with minimal space for equipment required.

  • Video

    Transport between processes in 3 cells with the 7-axis robot The flexibility of the 7 axis robot, allows workpiece transport between 3 cells using 1 robot, reducing equipment costs.

  • Video

    Multi-arm coordinated welding with our 7-axis robots. With the coordinated operation of the robot, dedicated jigs aren't needed for cutting
    costs, and setup times were greatly shortened.

  • Video

    Bolt palletizing system Dimension calculation and palletizing while using the small handling robot.

  • Video

    Screw-driving robot system An automated system that uses a robot for everything including: picking up bolts, applying screw lock materials, and screw fastening.

  • Video

    Transformer casing automatic welding system Fully automated welding system with a large handling robot and an arc welding robot.

  • Video

    Transformer case material handling robot Material handling to and from the shot blasting equipment with a large handling robot.

  • Video

    Parts loading to the press machine Hard labor by 4 operators is automated by robot.Productivity and safety has been improved.

  • Video

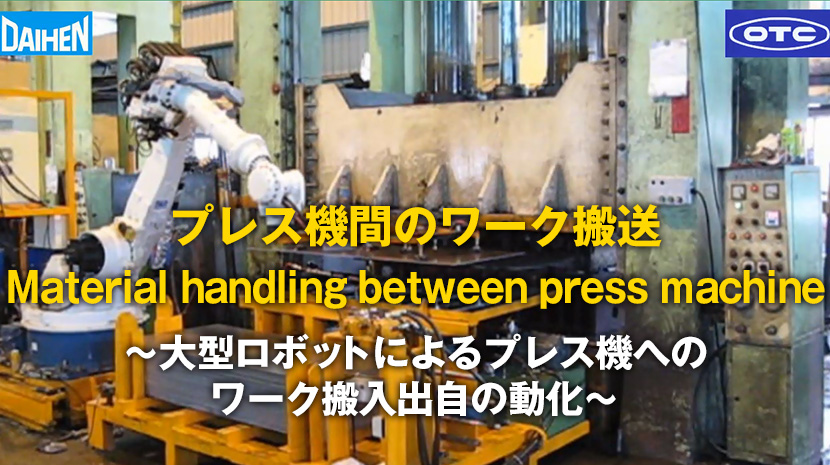

    Conveyor robot between presses Achieving automation of simple work by 3 robots.Productivity and safety has been improved.

  • Video

    Parts loading/unloading to the press machine Automated parts loading/unloading.Parts are loaded onto the pallet orderly by palletizing-function.

  • Video

    Parts loading/unloading to the pipe bending machine Achieving un-manned parts loading/unloading to the pipe bending machine.Productivity has been improved.

  • Video

    Parts loading/unloading to the forging machine Heated parts loading/unloading which requires speed is automated by robot.

  • Video

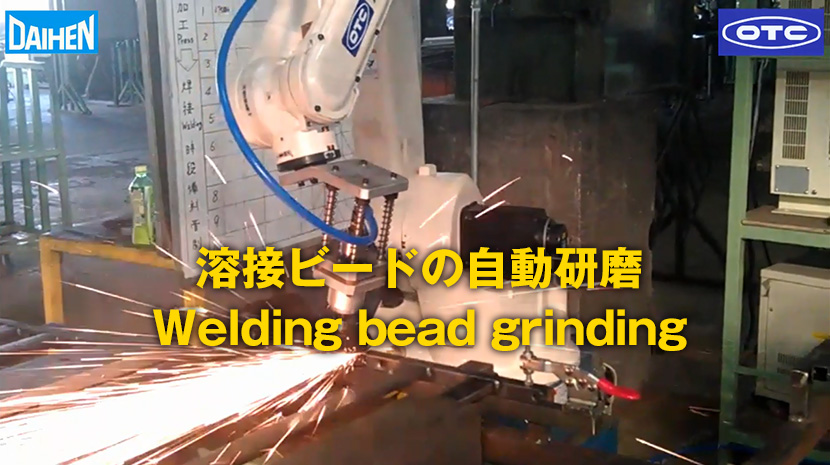

    Automatic polishing of welding bead Polishing operation after welding process is automated.Robot has released operators from dust environment.

  • Video

    Parts loading/unloading to the machine tool by 7-axis robot 7-axis robot goes around the front of machine tool and achieves parts loading/unloading by its incredible flexibility.It can be installed without blocking the front side of machine tool.

Laser welding & cutting

  • Video

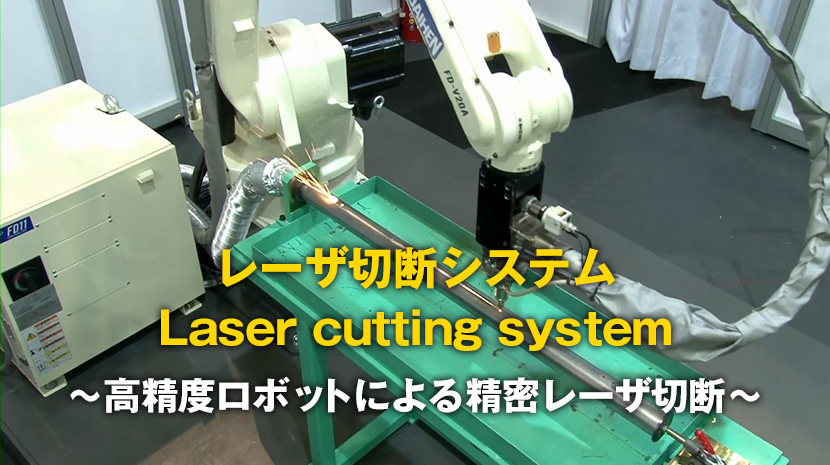

    Laser cutting with a world class highly accurate robot High-Accuracy robot for small circle cutting, saddle shape 3 dimensional cutting and straight line cutting. World-class straight track and circular arc track accuracy across the entire work envelope.

Sealant dispensing.

  • Video

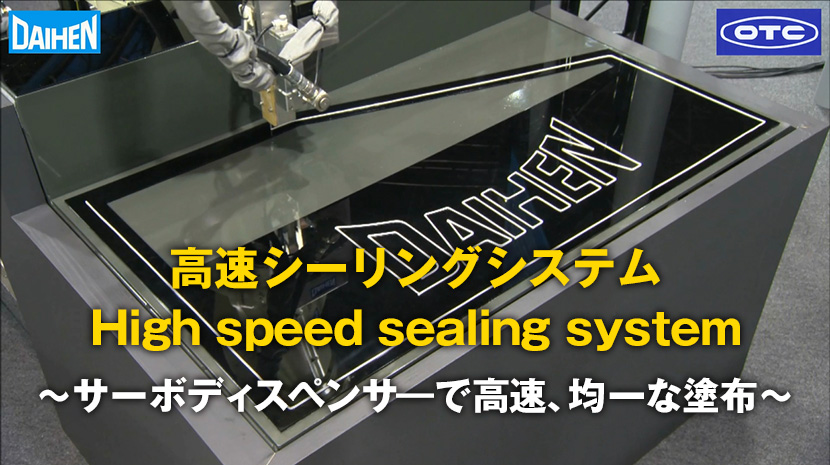

    High-speed sealing system Stable sealing can be done even at the maximum 1.5m/sec.
    high speed operation.

  • Video

    Sealant dispensing system Transformer casing lid adhesive dispensing application (0.3m/s)

Plasma welding

  • Video

    Plasma welding system.Using a concentrated plasma arc, and key hole (penetration), a weld can be done in one pass. For medium steel plates, welding time is greatly reduced compared to TIG multi-layer welding.

Plasma cutting

  • Video

    A horizontal articulated robot cuts steel I-beam.Daihen's proprietary horizontal articulated robot structure produces a wide range of movement.

  • Video

    Plasma cutting systemSquare pipe cutting and slit and hole processing with a highly accurate robot and positioner.

Screw driving and nut-running

  • Video

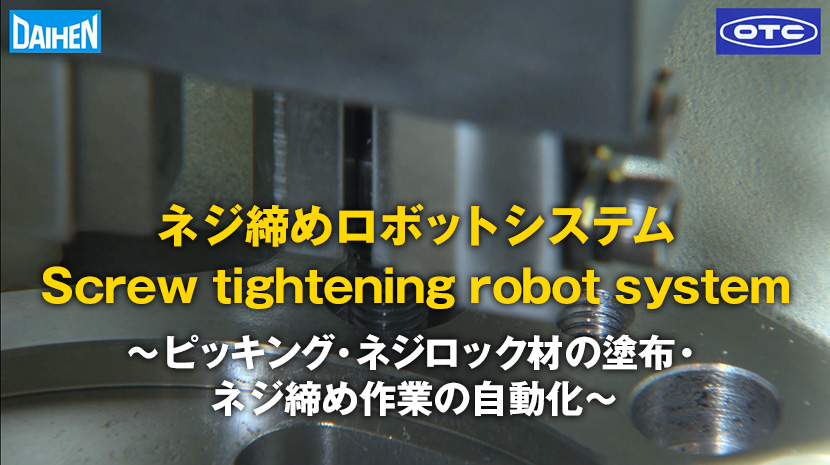

    Screw-driving robot system An automated system that uses a robot for everything including: picking up bolts, applying screw lock materials, and screw fastening.

Deburring

  • Video

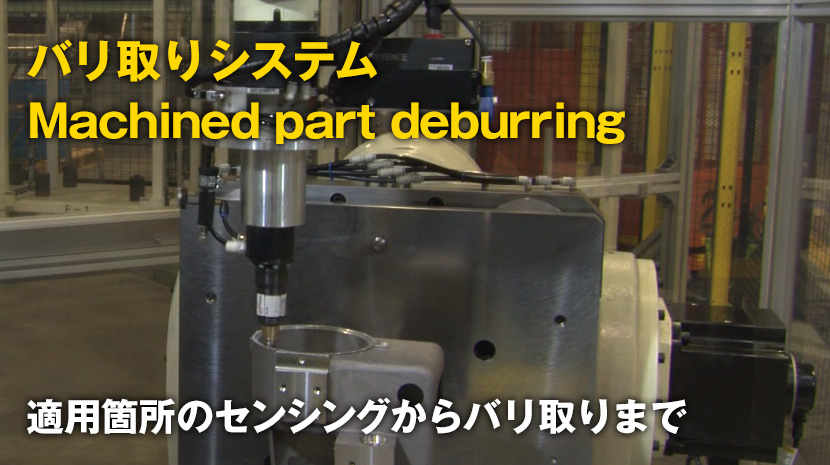

    Machined part deburring A flexible, robotic deburring cell incorporating machine vision for part location. A full set of rotary deburr tools are accessible via an automatic tool-change system on the robot end-of-arm, supporting a variety of finishing bits and supporting redundant tooling to manage expected bit wear.

Precision assembly and gear fitting

  • Video

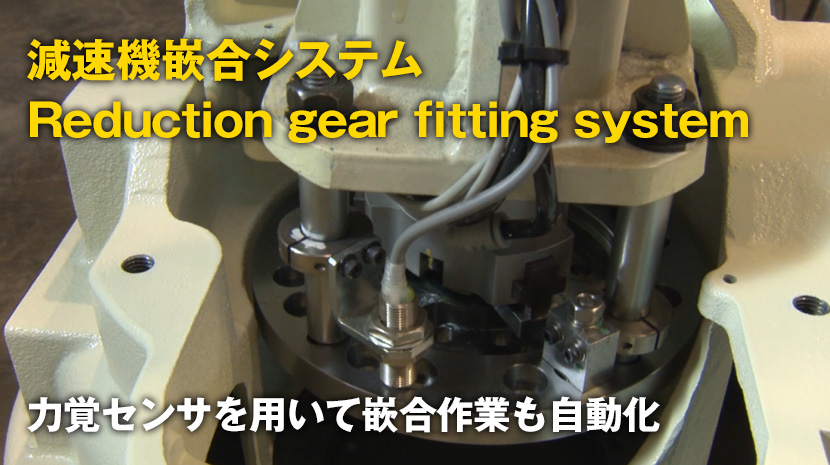

    Force-feedback guided robotic assembly. Our reduction gear is assembled incorporating a force sensor mount to our robot end-of-arm.

Thermal spraying

  • Video

    Thermal spray robot. Robotic thermal spray application.
