Material handling Load capacity form 5kg for compact arms to 210kg for large robots. Ready for material handling, transport, assembly and process work in all types of plants. Material handling Load capacity form 5kg for compact arms to 210kg for large robots. Ready for material handling, transport, assembly and process work in all types of plants.

Related products & functions

Wide range robot lineups

Lineup from 5kg payload compact type to 700kg payload large type

Compact and Light
payload robot
FD-H5 5kg payload FD-H5 5kg payload
H5
5k
payload
Medium payload robot
FD-V8 8kg payload FD-V8 8kg payload
V8
8kg
payload
FD-V8L 8kg payload FD-V8L 8kg payload
V8L
8kg
ppayload
FD-V25 25kg payload FD-V25 25kg payload
V25
25kg
payload
FD-V25L 25kg可搬 FD-V25L 25kg可搬
V25L
25kg
payload
FD-V50 50kg payload FD-V50 50kg payload
V50
50kg
payload
FD-B26 26kg payload FD-B26 26kg payload
B26
26kg
payload
7-axis robot
FD-VT8 8kg payload FD-VT8 8kg payload
VT8
8kg
payload
FD-VT8L 8kg payload FD-VT8L 8kg payload
VT8L
8kg
payload
FD-VT20 20kg payload FD-VT20 20kg payload
VT20
20kg
payload
High-accuracy robot
FD-A20 20kg payload FD-A20 20kg payload
A20
20kg
payload
Collaborative Robot
FD-VC4 4kg payload FD-VC4 4kg payload
VC4
4kg
payload
High payload robot
FD-V80 80kg payload FD-V80 80kg payload
V80
80kg
payload
FD-V100 100kg payload FD-V100 100kg<br>payload
V100
100kg
payload
FD-V130 130kg payload FD-V130 130kg payload
V130
130kg
payload
FD-B100 100kg payload FD-B100 100kg payload
B100
100kg
payload
FD-V166 166kg payload FD-V166 166kg payload
V166
166kg
payload
FD-V210 210kg payload FD-V210 210kg payload
V210
210kg
payload
Heavy payload robot
FD-V280L 280kg payload FD-V280L 280kg payload
V280L
280kg
payload
FD-V350 350kg payload FD-V350 350kg payload
V350
350kg
payload

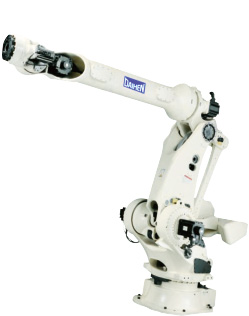

FD-V400L400kg payload FD-V400L 400kg payload
V400L
400kg
payload

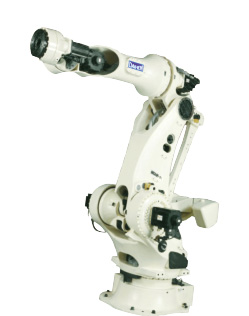

FD-V600 600kg payload FD-H5 600kg payload
V600
600kg payload

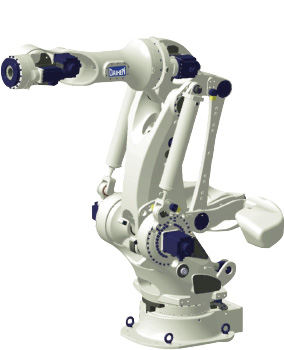

FD-V700 700kg payload FD-V700 700kg payload
V700
700kg
payload

2D vison sensor

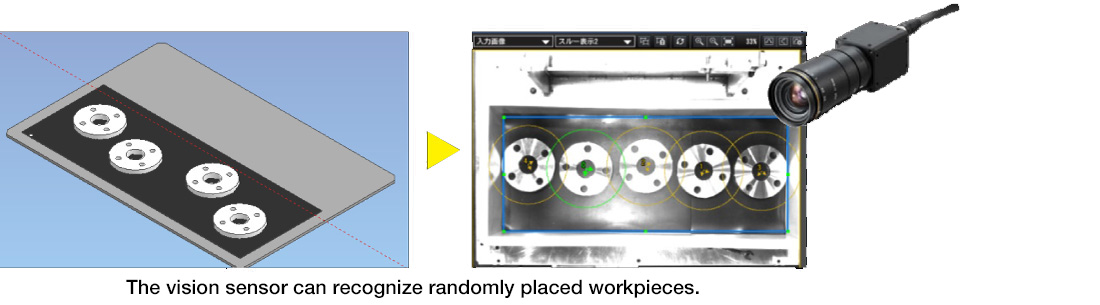

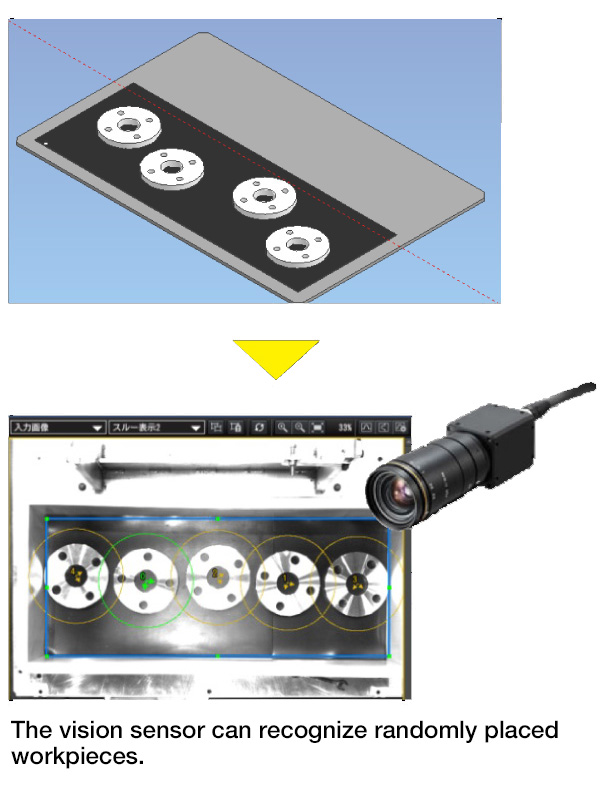

Connection to the 2D Vision Sensor is simple. Randomly placed workpieces are recognized
and applications such as automatic picking by the robot have expanded.

2D vison sensor 2D vison sensor

Offline teaching system FD-ST

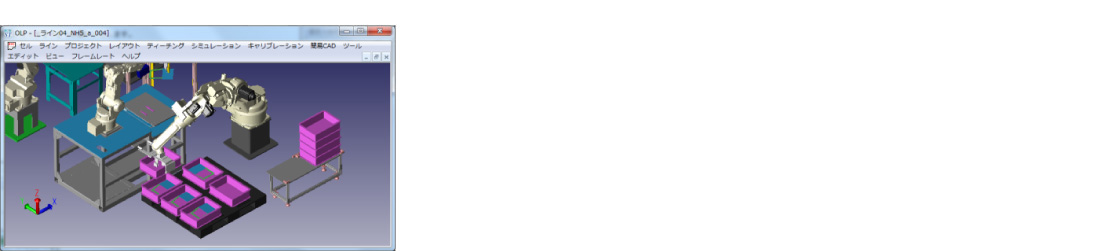

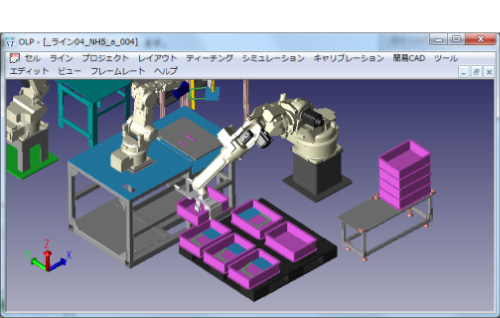

Offline simulation software can reduce implementation of machine load/
unload and other material handling application by generating the robot programs necessary to perform the work.

Offline teaching system FD-ST Offline teaching system FD-ST

Palletizing

Palletizing and de-palletizing are simple, specify the workpiece number, stacking pattern and the layout and you are ready to run.

Adaptive motion

Mechanical compliance is built-in to the servo controller to absorb interference force, eliminating the need for a mechanical compliance device.

Video

Video

7-axis robot performance video The flexibility of a 7-axis robot makes high density installations posibile with minimal space for equipment required.

Video

Transport between processes in 3 cells with the 7-axis robot The flexibility of the 7 axis robot, allows workpiece transport between 3 cells using 1 robot, reducing equipment costs.

Video

Multi-arm coordinated welding with our 7-axis robots. With the coordinated operation of the robot, dedicated jigs aren't needed for cutting
costs, and setup times were greatly shortened.

Video

Bolt palletizing system Dimension calculation and palletizing while using the small handling robot.

Video

Screw-driving robot system An automated system that uses a robot for everything including: picking up bolts, applying screw lock materials, and screw fastening.

Video

Transformer casing automatic welding system Fully automated welding system with a large handling robot and an arc welding robot.

Video

Transformer case material handling robot Material handling to and from the shot blasting equipment with a large handling robot.

Robots

  • Low payload(3～8kg)

    1. FD-B6
    2. FD-V8
    3. FD-B6L
    4. FD-V8L
    1. FD-H5
    FD-V6 Manipulator specs

    Manipulator specsLow payload(3～8kg)

    • 1
    • 2
    • 　 FD-B6 FD-V8 FD-B6L FD-V8L
      Type NB6 NV8 NB6L NV8L
      Number of Axes 6 6 6 6
      Maximum pay load capacity 6kg 8kg 6kg 8kg
      Positional Repeatability ±0.08mm ±0.08mm 士0.08mm 士0.08mm
      Drive capacity 3132W 3016W 4832W 5000W
      Working
      range      		 Arm J1 ±170°（±50°） ±170° (±50°) 士170°（士50°) ±170° (±50°)
      J2 –155°〜+90° –155°〜+90° -155°〜+100° -155°〜+100°
      J3 –170°〜+245° –170°〜+190° -170°〜+190° -170°〜+260°
      Wrist J4 ±155° ±180° ±土155°（土170°) 士180°
      J5 –45°〜+225° –50°〜+230° -45°〜+225°（注5) -50°〜+230°
      J6 ±205° ±360° 士205°（士360°) 士360°
    • 　 FD-H5
      Type NH5
      Number of Axes ◀
      Maximum pay load capacity 5kg
      Positional Repeatability ±0.05mm
      Drive capacity 1440W
      Working
      range      		 Arm J1 ±170°
      J2 –125°〜+90°
      J3 –140°〜+245°
      Wrist J4 ±190°
      J5 –30°〜+210°
      J6 ±360°

  • Medium payload(15～25kg)

    1. FD-V25
    2. FD-V25L
    3. FD-B26
    FD-B15 Manipulator specs

    Manipulator specsMedium payload(15～25kg)

    • 　 FD-V25 FD-V25L FD-B26
      Type NV25 NV25L NB26
      Number of Axes 6 6 6
      Maximum pay load capacity 25kg 25kg 26kg
      Positional Repeatability 士0.07mm 士0.07mm 士0.04mm
      Drive capacity 5600W 11,500W 5800W
      Working
      range      		 Arm J1 土170°（土50°) 土180° 土170°（土50°)
      J2 -155°〜+100° -155°〜+90° -155°〜+100°
      J3 -170°〜+260° -180°〜+250° -170°〜+250°
      Wrist J4 土180° 土180° 土170°（土155°)
      J5 -50°〜+230° -50°〜+230° -45°〜+225°
      J6 土360° 土360° 土360° （土205°)

  • High payload(50～210kg)

    1. FD-V50
    2. FD-V80/V100/V130
    3. FD-B100
    4. FD-V166
    5. FD-V210
    FD-V50 Manipulator specs

    Manipulator specsHigh payload(50～210kg)

    • 　 FD-V50 FD-V80 FD-V100 FD-V130 FD-B100 FD-V166 FD-V210
      Type NV50 NV80 NV100 NV130 NB100 NV166 NV210
      Number of Axes 6 ◀ ◀ ◀ 6 ◀ ◀
      Maximum pay load capacity 50kg (注) 80kg 100kg 130kg 100kg 166kg 210kg
      Positional Repeatability ±0.07mm ±0.08mm (注1) ◀ ◀ ±0.08mm (注1) ±0.1mm (注1) ±0.15mm (注1)
      Drive capacity 14750W 15kW ◀ ◀ 16kW 18kW ◀
      Working
      range      		 Arm J1 ±165° ±180° ◀ ◀ ±180° ◀ ◀
      J2 +80°～-135° –155°〜+90° ◀ ◀ –155°〜+90° –80°〜+60° ◀
      J3 +260°～-146° –185°〜+220° ◀ ◀ –185°〜+170° –146.5°〜+150° ◀
      Wrist J4 ±360° ±360° ◀ ◀ ±210° ◀ ◀
      J5 ±125° –35°〜+215° ◀ ◀ –35°〜+215° ±135° ±130°
      J6 ±450° ±360° ◀ ◀ ±210° ◀ ◀

  • 7-axis robot

    1. FD-BT6
    2. FD-BT6L
    3. FD-VT8
    4. FD-VT8L
    5. FD-VT20
    Manipulator specs FD-BT6

    Manipulator specs7-axis robot

    • 　 FD-BT6 FD-BT6L FD-VT8 FD-VT8L FD-VT20
      Structure Vertical articulated type Vertical articulated type Vertical articulated type Vertical articulated type Vertical articulated type
      Number of Axes 7 7 7 7 7
      Maximum pay load capacity 6kg 6kg 8kg 8kg 20kg
      Positional Repeatability ±0.05mm ±0.06mm ±0.05mm ±0.06mm ±0.06mm
      Drive method AC servo motor AC servo motor AC servo motor AC servo motor AC servo motor
      Drive capacity 3550W 5650W 3600W 6000W 6600W
      Position feedback Absolute encoder Absolute encoder Absolute encoder Absolute encoder Absolute encoder
      Working
      range      		 Arm J1 ±170° ±170° ±170° ±170° ±170°
      J2 –145°〜+70° –145°〜+75° –145°〜+70° –145°〜+75° –145°〜+75°
      J7 ±90° ±90° ±90° ±90° ±90°
      J3 –170°〜+142.6° –170°〜+154° –170°〜+149° –170°〜+160° –170°〜+160°
      Wrist J4 ±155° ±155° ±180° ±180° ±180°
      J5 –45°〜+225° –45°〜+225° –50°〜+230° –50°〜+230° –50°〜+230°
      J6 ±205° ±205° ±360° ±360° ±360°

  • High-accuracy robot

    1. FD-A20
    Manipulator specs FD-A20

    Manipulator specsHigh-accuracy robot

    • 　 FD-A20
      Type NA20
      Number of Axes 6
      Maximum pay load capacity 20kg
      Positional Repeatability ±0.07mm
      Drive capacity 7900W
      Working
      range      		 Arm J1 ±170°
      J2 –70°〜+60°
      J3 –140°〜+240
      Wrist J4 ±180°
      J5 –50°〜+230°
      J6 ±360°

  • Collaborative Robot

    1. FD-VC4
    Manipulator specs FD-VC4

    Manipulator specsCollaborative Robot

    • 　 FD-VC4
      Type NVC4
      Number of Axes 6
      Maximum pay load capacity 37kg
      Positional Repeatability ±0.03mm
      Drive capacity 800W
      Working
      range      		 Arm J1 ±170°
      J2 –155°〜+90°
      J3 –155°〜+180°
      Wrist J4 ±170°
      J5 –30°〜+210°
      J6 ±360°
