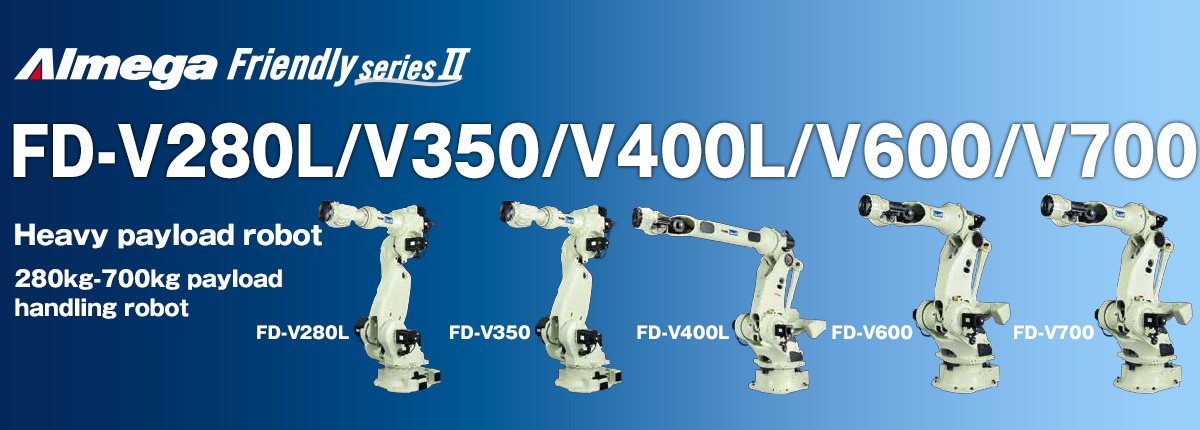

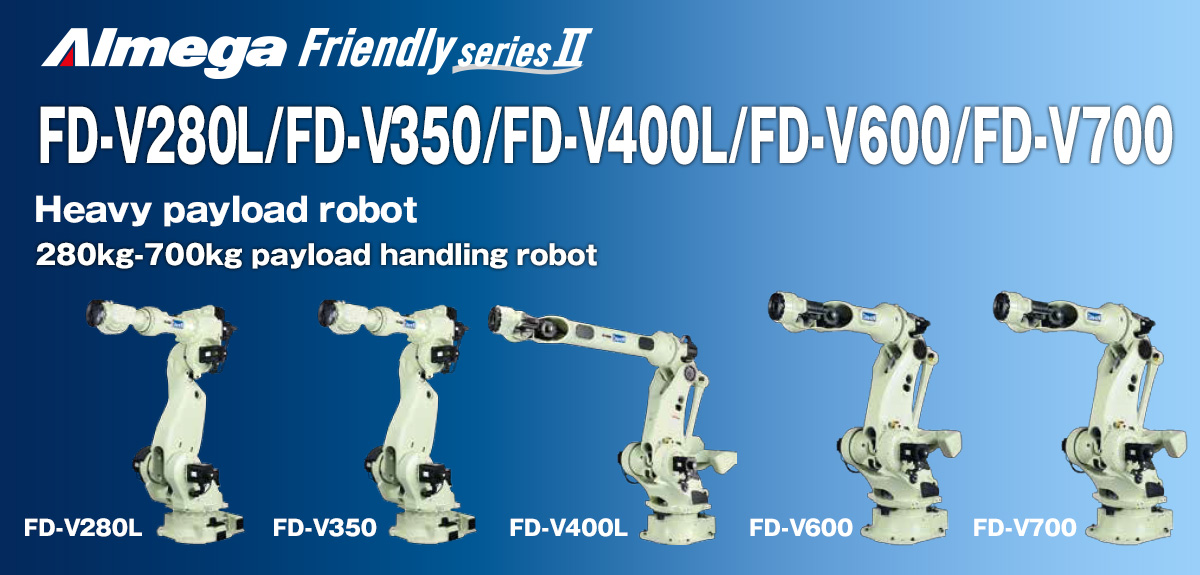

AImega Frendly series FD-V280L/V350/V400L/V600/V700 Three new models 100-kg payload class handling robots. AImega Frendly series FD-V280L/V350/V400L/V600/V700 Three new models 100-kg payload class handling robots.

Main features

  • Poweful

    • Large workpieces can be transported easily with extra wrist torque

  • High speed motion

    • Top level performance in its class

  • Wide range robot lineups

    • Robot type can be selected according to the application

Specifications

Item
Specifications
Model Number
FD-V280L
FD-V350
FD-V400L
FD-V600
FD-V700
Model name
NV280L
NV350
NV400L
NV600
NV700
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
280kg
350kg
400kg
600kg
700kg
Weight
1660kg
1620kg
3050kg
2850kg
3320kg
Load of Upper Arm
25kg(*)
50kg(*)
50kg(*)
50kg(*)
25kg(*)

(Note) The capacity of the upper arm varies with the wrist capacity.
These specifications are subject to change without prior notice.

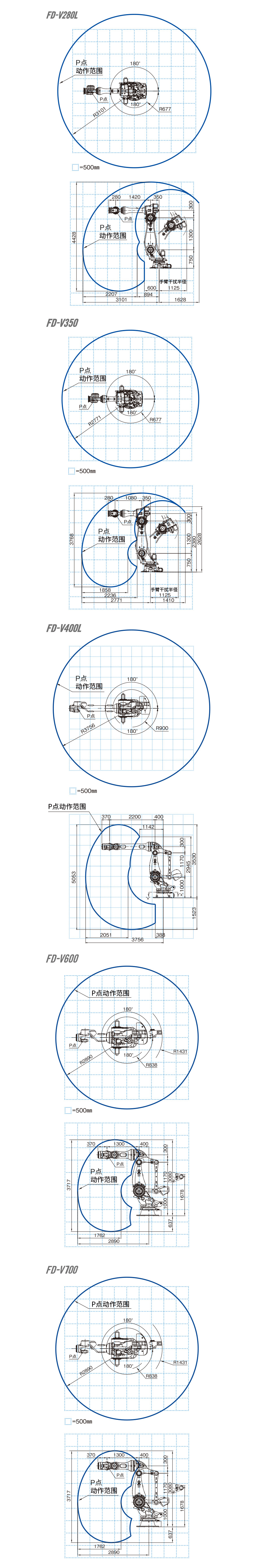

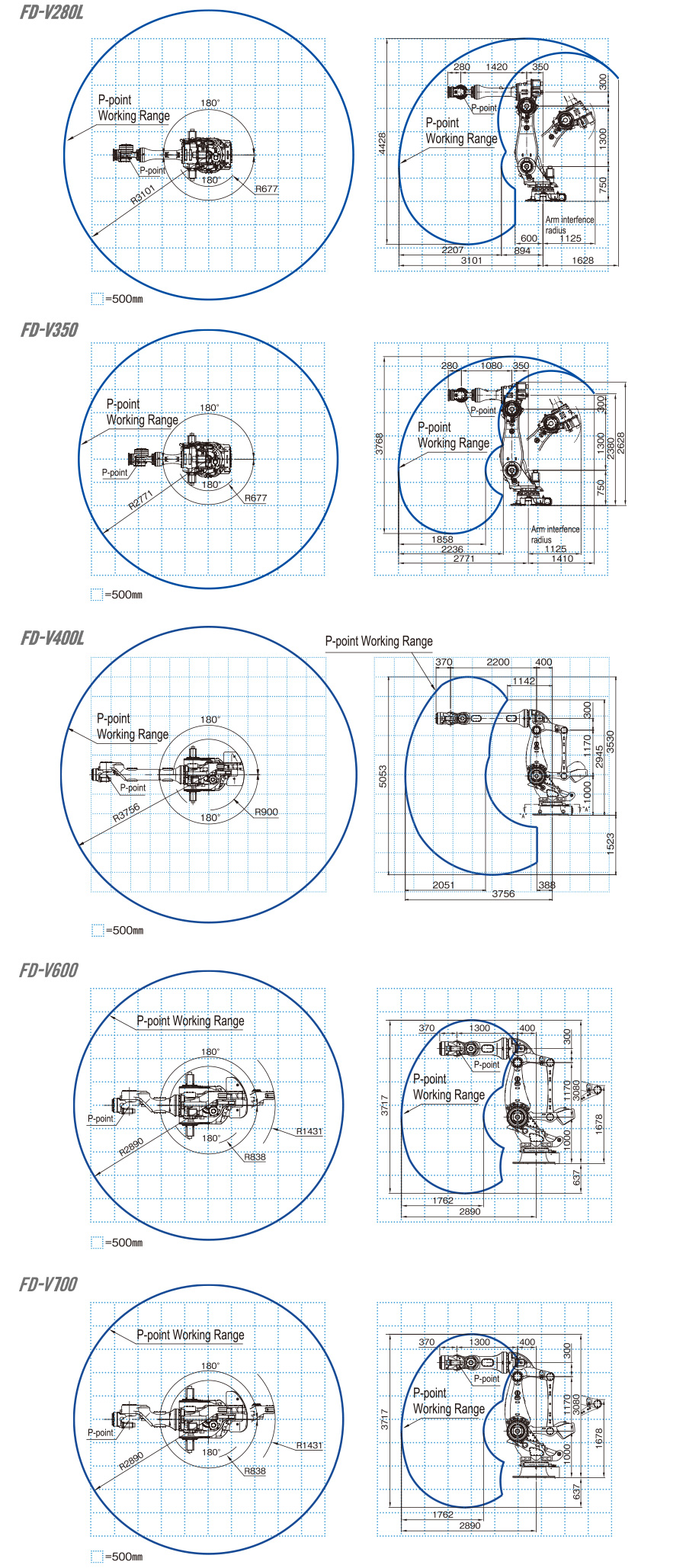

Working Range

Working Range
  • Product catalog

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
