Laser welding & cutting World class, high-accuracy robot.Laser welding and cutting. Equipment cost-reduction over expensive 3D CNC processer. Laser welding & cutting World class, high-accuracy robot.Laser welding and cutting. Equipment cost-reduction over expensive 3D CNC processer.

Related products & functions

World class, high-accuracy robot.FD-A20

FD-A20

High path accuracy over the entire work envelope.
Precision processing can be done for 10m/min high speed welding and even for small circles that are less than Φ10mm.

High path accuracy over the entire work envelope. High path accuracy over the entire work envelope.

Offline teaching systemFD-ST

FD-ST

With one touch of a button, you can automatically create
a robot work program from a CAD data file sent directly to the robot controller.

Laser equipment and interface

Integrates easily with major brands laser oscillators via a simple, easy-to-use interface that comes as a standard equipment.

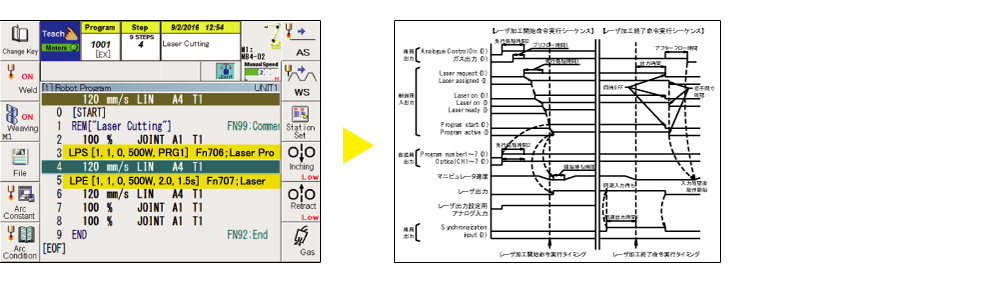

Laser welding and cutting dedicated commands

Laser welding and cutting commands are standardized, and the robot processing sequence process start time and stop time are also set automatically.

Laser welding and cutting dedicated commands Laser welding and cutting dedicated commands

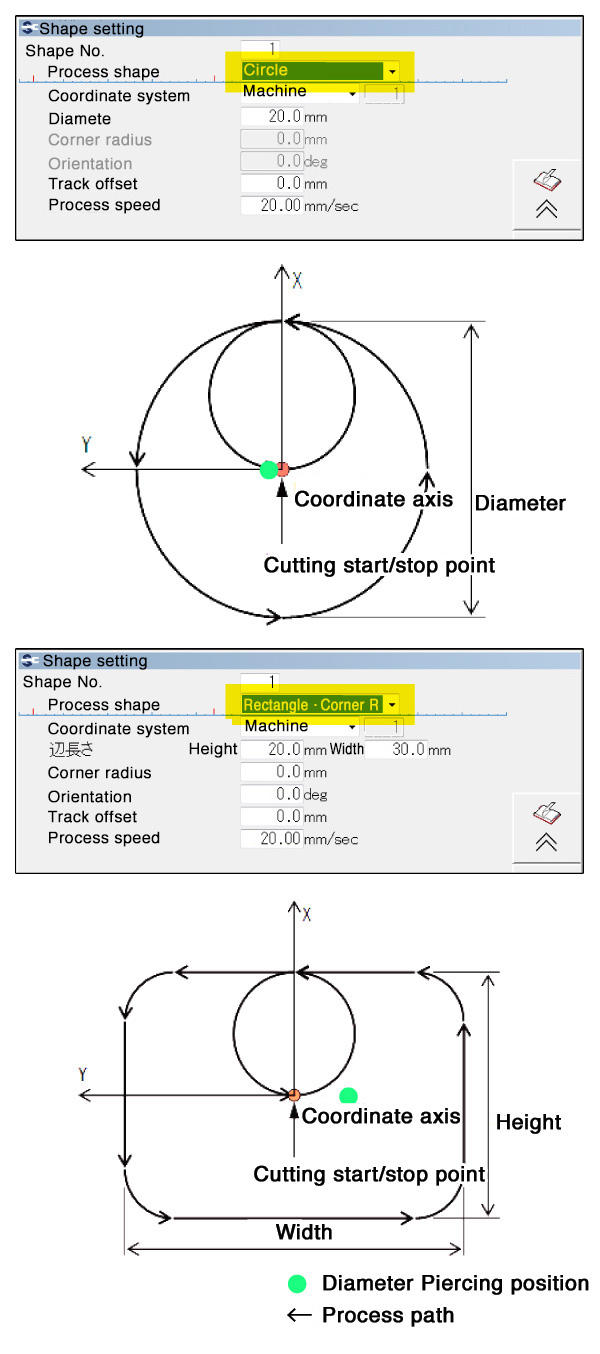

Laser cutting program creation function

A basic cutting program can be automatically created on the teach pendant with one touch.

Laser cutting program creation function Laser cutting program creation function

Video

Video

Laser cutting with a world class highly accurate robot High-Accuracy robot for small circle cutting, saddle shape 3 dimensional cutting and straight line cutting. World-class straight track and circular arc track accuracy across the entire work envelope.
