AImega Frendly series FD-A20 World class, state-of-the-art, high-accuracy robot for micro-fabrication (joining and cutting). AImega Frendly series FD-A20 World class, state-of-the-art, high-accuracy robot for micro-fabrication (joining and cutting).

Main features

  • World class, state-of-the-art,
    tracking accuracy.

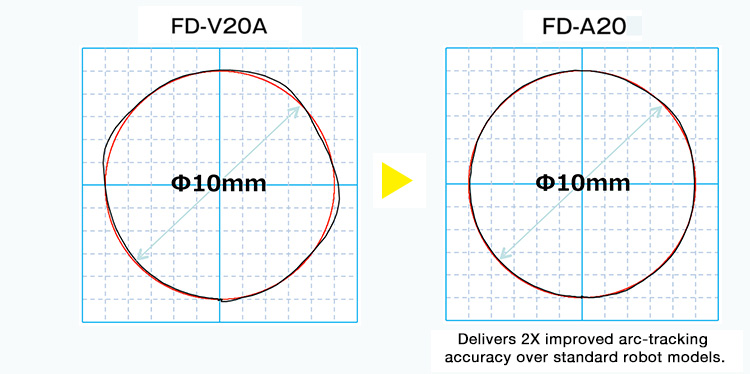

  • ● High tracking accuracy throughout the entire robot work envelope.
    ● High accuracy delivered in both straight-line and small-arc applications.

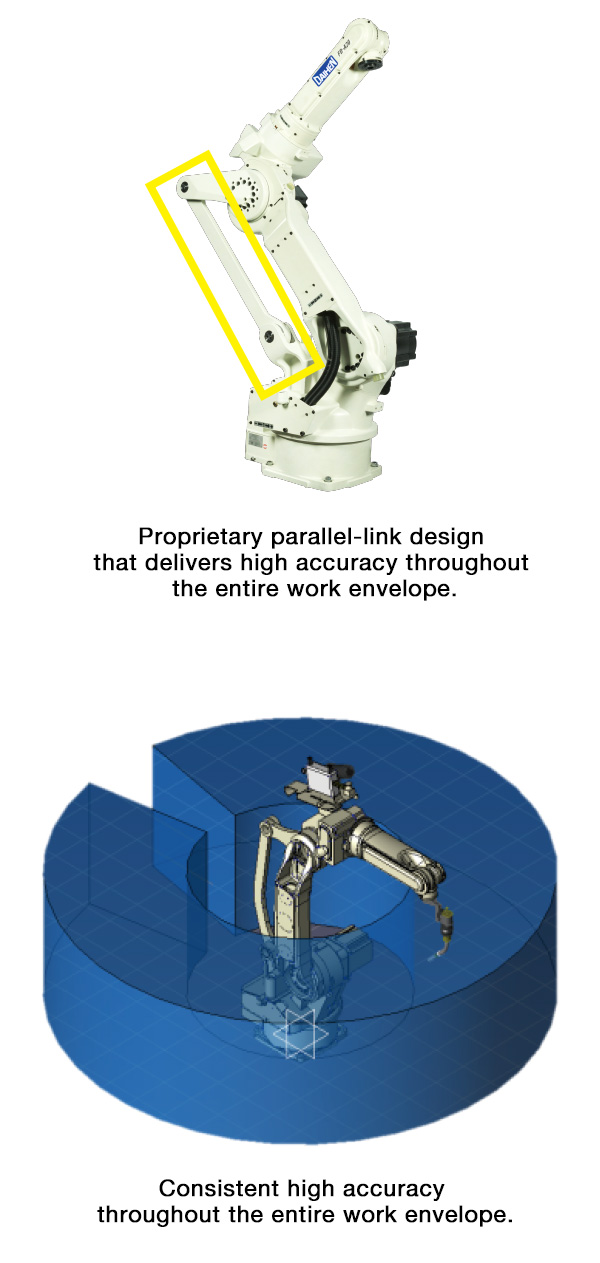

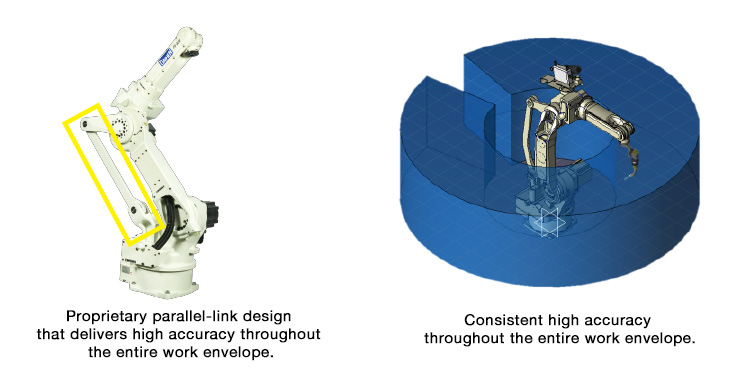

    Proprietary parallel-link design that delivers high accuracy throughout the entire work envelope. Proprietary parallel-link design that delivers high accuracy throughout the entire work envelope.
  • Optimized for laser micro-fabrication, laser applications.
    Laser interface, standard.FD-ST
  • ● Standard interface with easy teaching and integration to production-ready laser oscillators.
    ● Standard interface with easy teaching and integration to production-ready laser oscillators.
    ● Your laser cutting programs are automatically generated from your CAD data via our offline teaching application software: FD-ST.

    Your laser cutting programs are automatically generated from your CAD data via our offline teaching application software: FD-ST. Your laser cutting programs are automatically generated from your CAD data via our offline teaching application software: FD-ST.
  • Accommodates various mounting positions
    (floor, ceiling and wall hanging).
  • ● 20kg payload accommodate a laser welding torch.

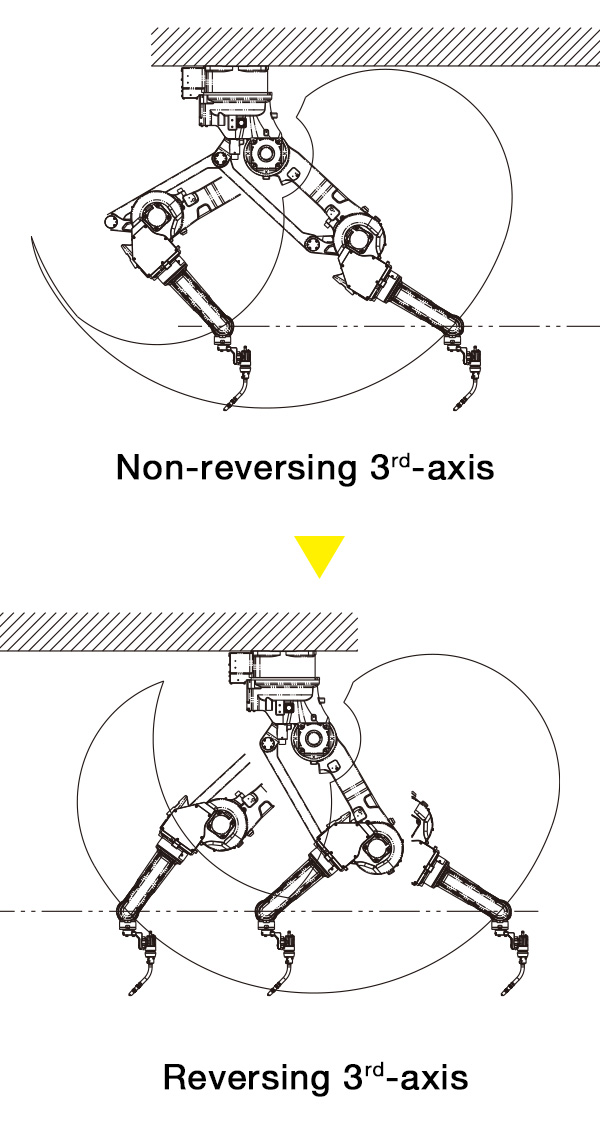

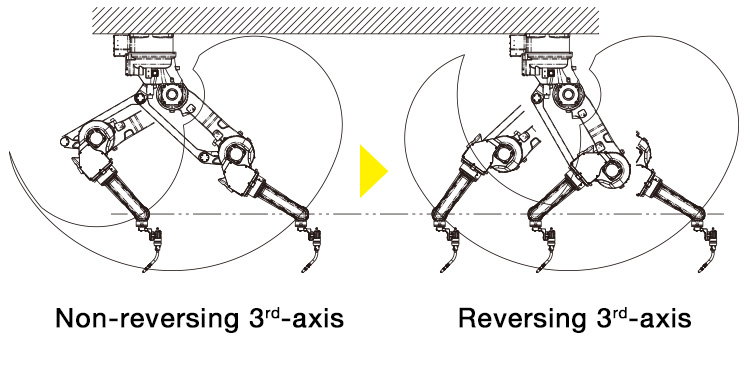

    ● Even though it uses a parallel link structure, optional reverse rotation of the 3rd-axis is enabled, supporting expanded work envelope to the rear of the robot.

    Even though it uses a parallel link structure, optional reverse rotation of the 3rd-axis is enabled, supporting expanded work envelope to the rear of the robot. Even though it uses a parallel link structure, optional reverse rotation of the 3rd-axis is enabled, supporting expanded work envelope to the rear of the robot.

Video

  • Laser cutting with a world class highly accurate robot

Specifications

Item
Specifications
Model name
NA20
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
20kg
Weight
355kg
Load of Upper Arm
20kg

※These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.

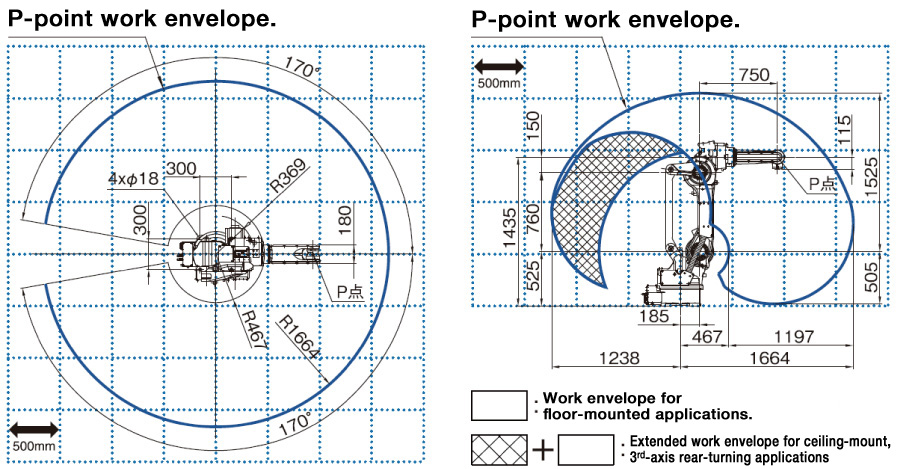

Work envelope.
