AImega Frendly series FD-B100 Three new models 100-kg payload class handling robots. AImega Frendly series FD-B100 Three new models 100-kg payload class handling robots.

Main features

  • High-density layout

    • Slim design avoids interference with robots and Jigs
    • Wide operating range and narrow interference radius

  • Reducing cycle time

    • Top level speed in the class

  • Easy communication with peripherals

    • Support with application cable of various communication standards
    • Buillt-in cable from robot base to shoulder

Specifications

Item
Specifications
Model Number
NB100
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
100kg
Weight
793kg
Load of Upper Arm
50kg(*1)

(*1) The capacity of the upper arm varies with the wrist capacity.
※These specifications are subject to change without prior notice.

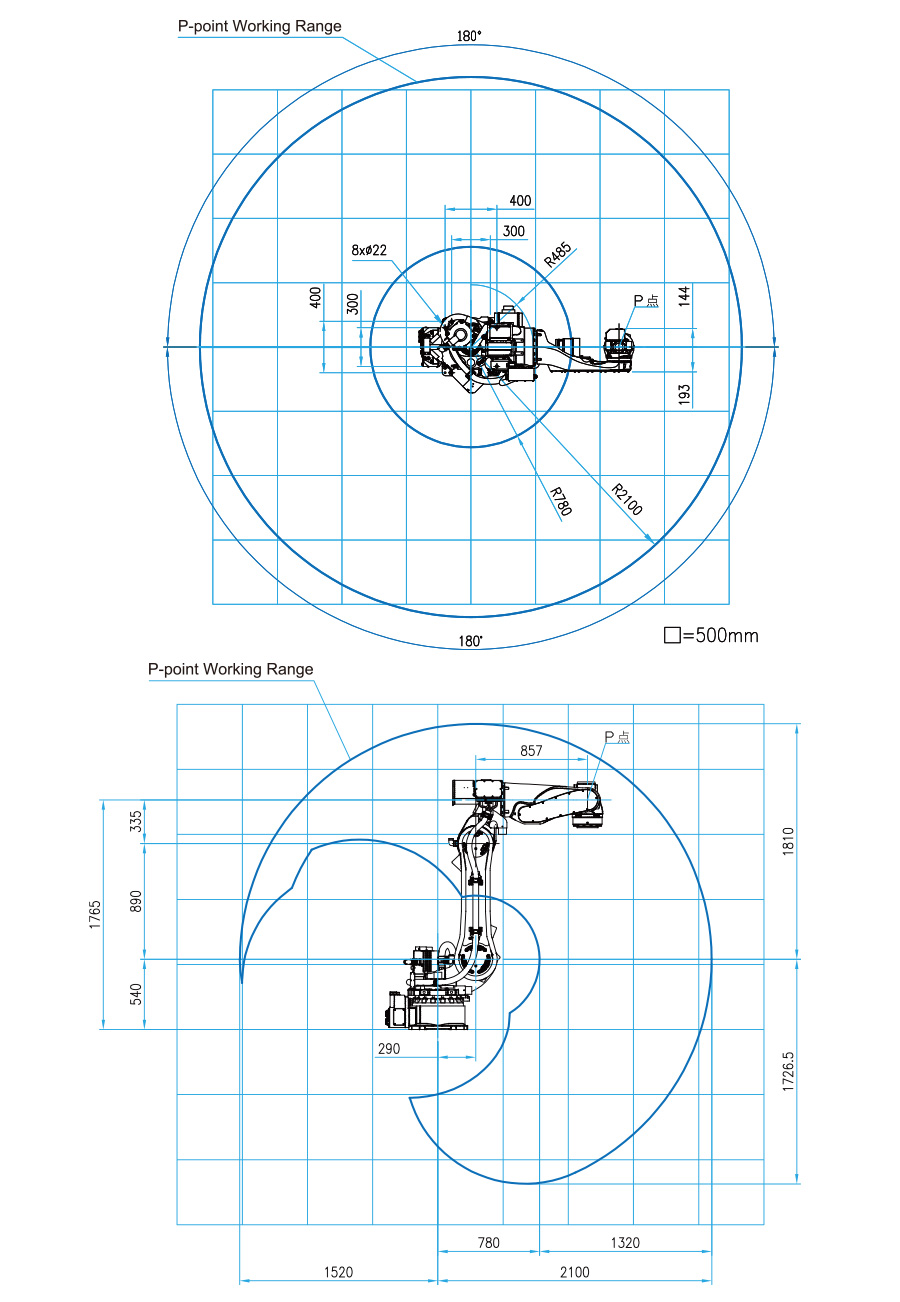

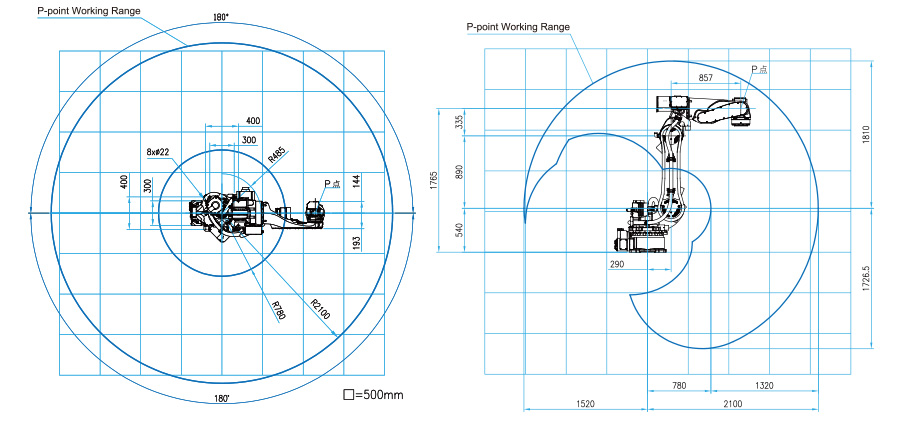

Working Range

Working Range
  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
