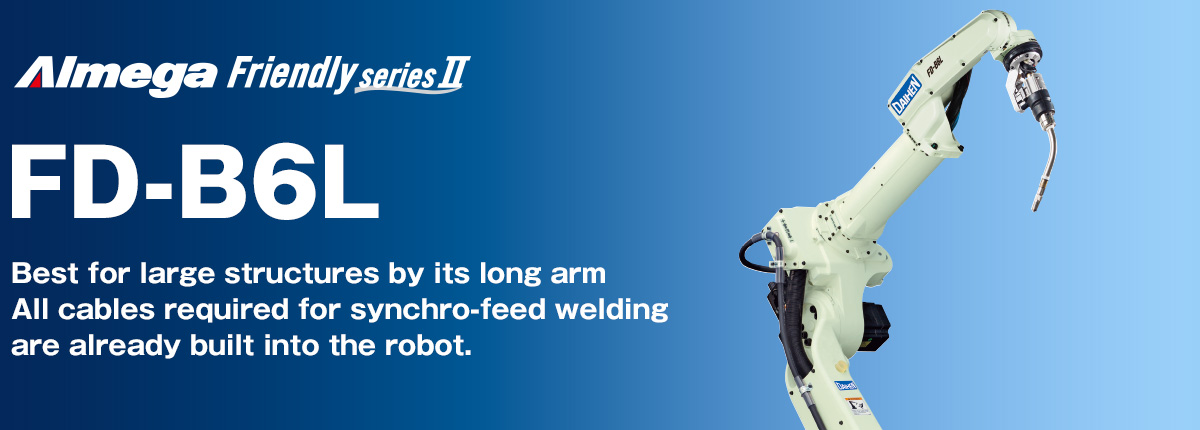

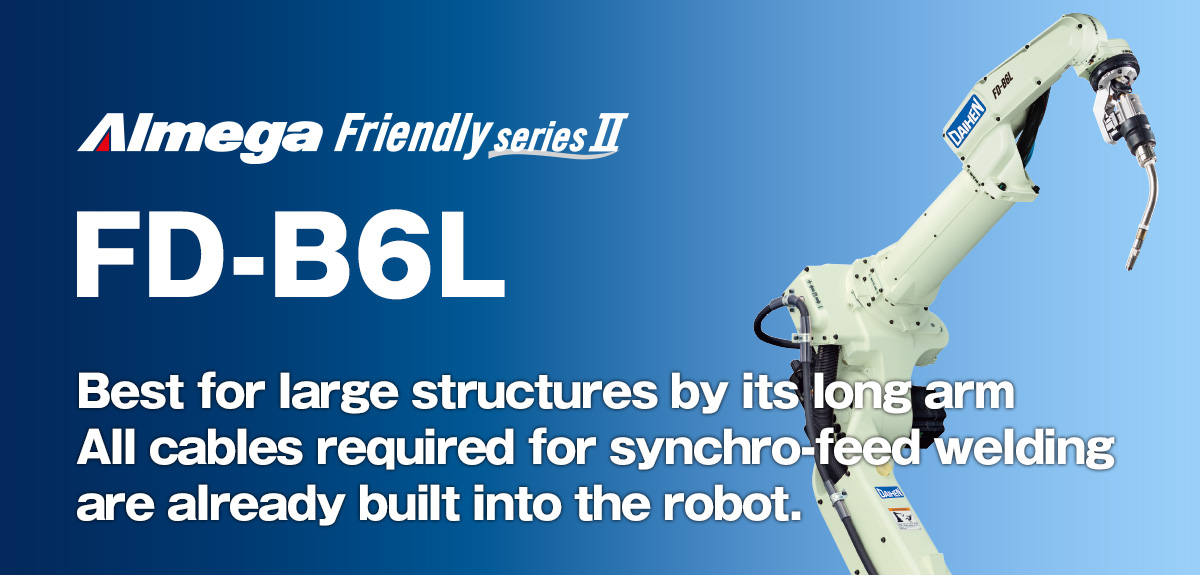

AImega Frendly series FD-B6L Compact, high performance design, with application for large workpieces. AImega Frendly series FD-B6L Compact, high performance design, with application for large workpieces.

Main features

  • Faster
    cycle time

    Due to the industry’s fastest speeds, cycle times are reduced.

  • Slim design

    30% reduction in footprint compared to current models.High-density layout for complex systems.

  • User-friendly operation

    Designed to avoid interference behind the arm (All cables required for synchro-feed welding are already built into the robot)

  • Stronger structure

    Maximum payload is 6kg. Can be equipped with various torches and sensors. It is good for handling application.

Specifications

Item
Specifications
Model name
NB6L
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
6kg
Weight
237kg
Load of Upper Arm
20kg(*)

(Note) The capacity of the upper arm varies with the wrist capacity.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
