AImega Frendly series FD-BT6L 7th-axis delivers motion and wrist positions unavailable in arms with fewer axes of movement. AImega Frendly series FD-BT6L 7th-axis delivers motion and wrist positions unavailable in arms with fewer axes of movement.

Main features

  • Extra axis of motion delivers ultimate flexibility for your robotic application.

    7th-axis with a built-in cable delivers ultimate flexibility for your robotic application.

  • Simple manual operation realized

    While teaching for a 7-axis robot tends to be a complex operation, Daihen's Synchro-motion technology maintains torch attitude and angle while teaching weld path positions.

  • The world's first ever built-in welding power cable!

    Our welding power cable is built into the 7th axis, a world first! Teaching can be done without concern for cable interference with jigs or workpieces.

  • Applicable to a wide range of workpieces.

    Extended reach supports small parts to large workpieces.

Video

  • Video

    Automation utilizing existing equipment and spaceRobot system package for sheet metal processing

  • Video

    7-axis robot performance video

Specifications

Item
Specifications
Model name
NBT6L
Structure
Vertical articulated type
Number of Axes
7
Wrist payload
6kg
Weight
330kg
Load of Upper Arm
10kg(*)

(Note) When loading the Max. payload capacity as the end effector.
These specifications are subject to change without prior notice.

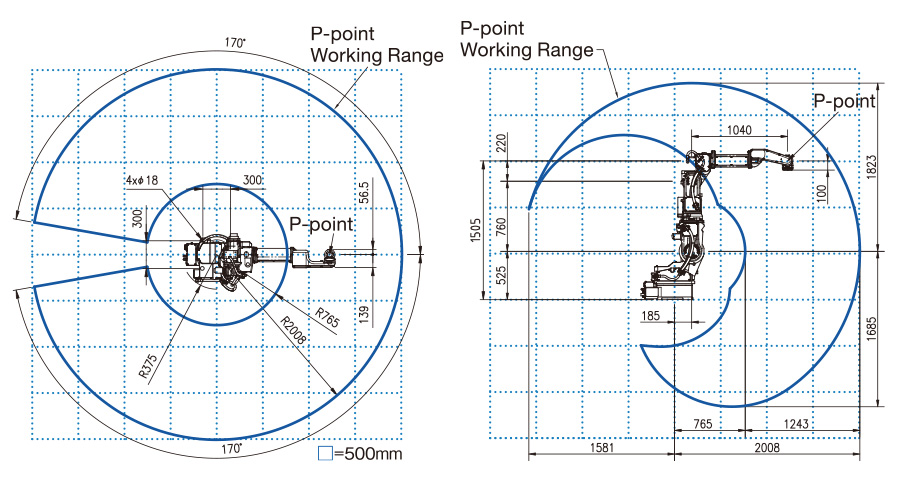

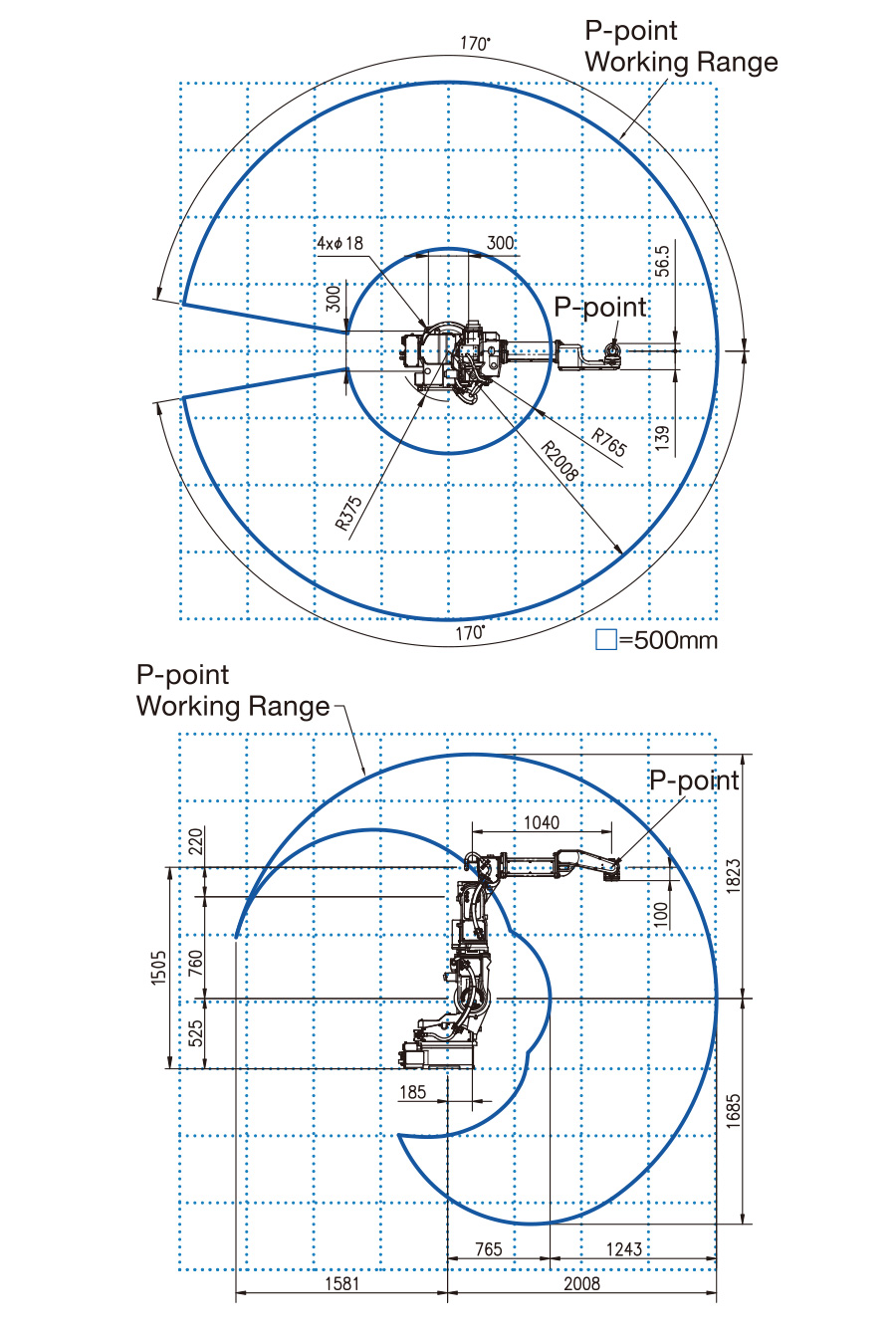

Working Range

Working Range
Working Range
