AImega Frendly series FD-V25L Extra-Long Reach Medium Class Robot The range of robot selection will expand! Reduced systematization costs! AImega Frendly series FD-V25L Extra-Long Reach Medium Class Robot The range of robot selection will expand! Reduced systematization costs!

Main features

  • 3m reach robot
    with 25kg payload

    3m reach covering a wide working area without a slider
    Compared to our model:
    1.5 times V8L and 1.8 times V25!

  • High-speed operation

    Contributes to improved productivity with the highest
    operating speed in the same class

  • Various applications

    A payload capacity of 25 kg is sufficient to attach
    various tools such
    as welding and handling!






New proposal New proposal


Specifications

Item
Specifications
Model name
NV25L
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
25kg
Weight
620kg
Load of Upper Arm
10kg(*)

(Note) The capacity of the upper arm varies with the wrist capacity.
These specifications are subject to change without prior notice.

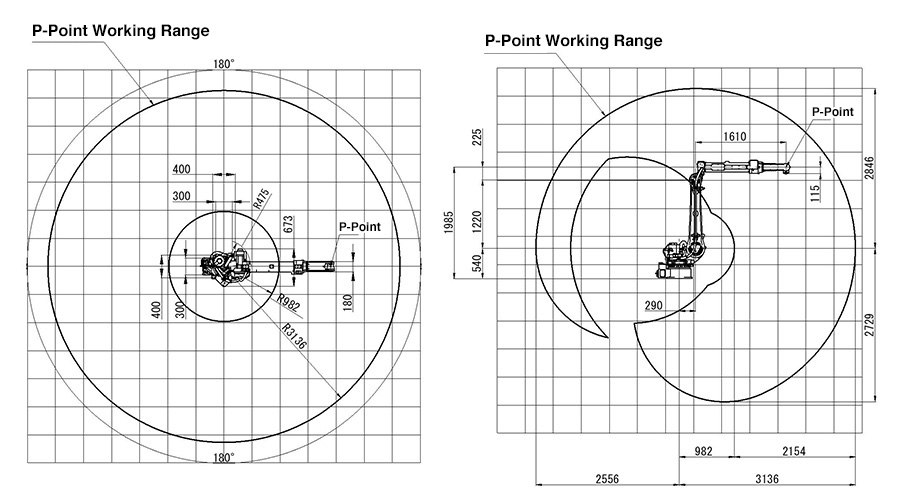

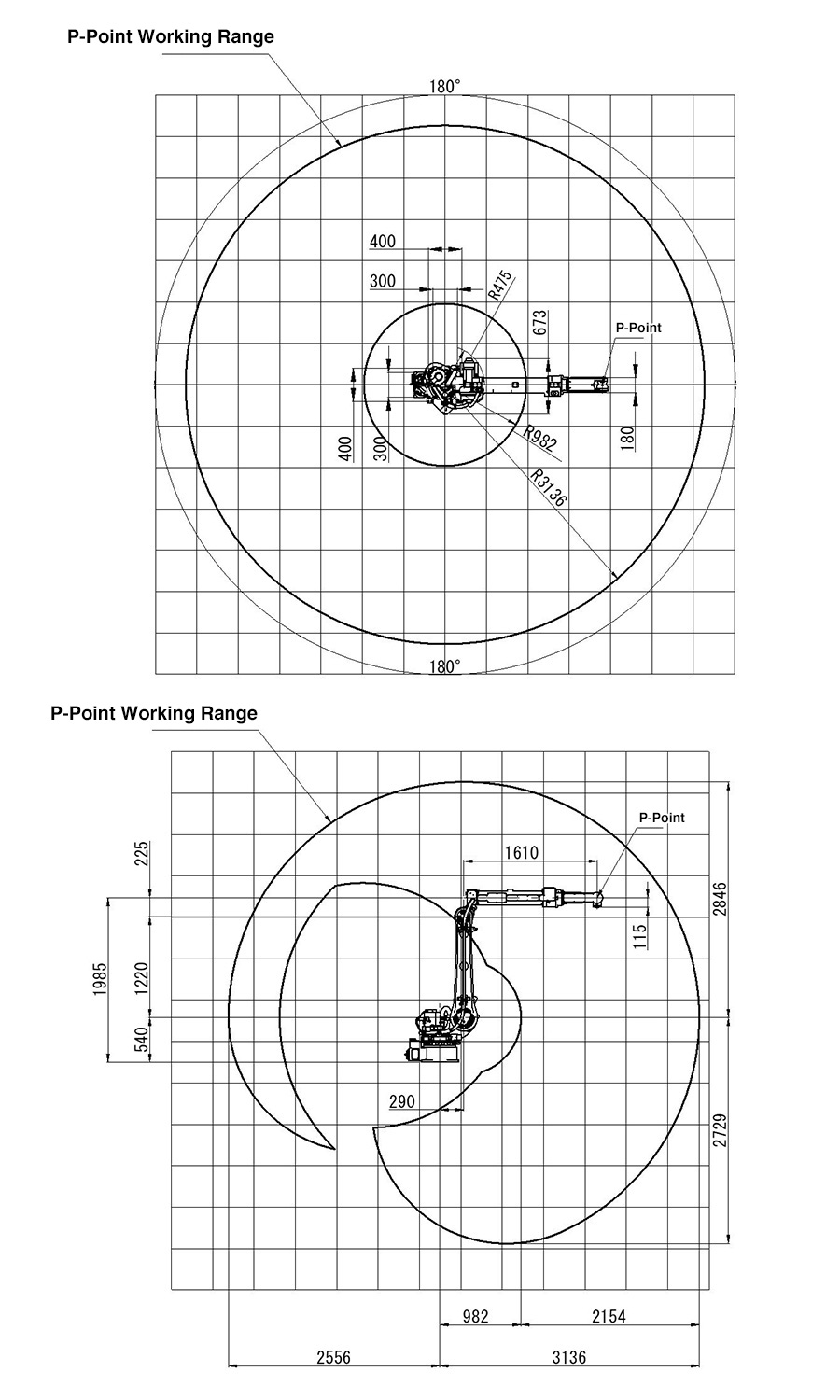

Working Range

Working Range
Working Range
