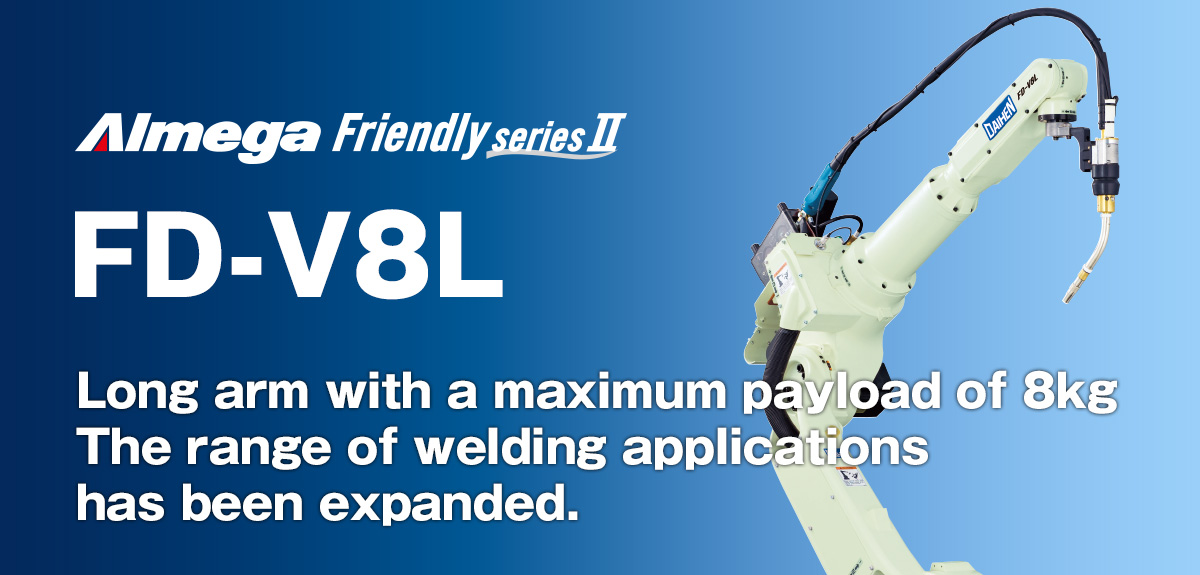

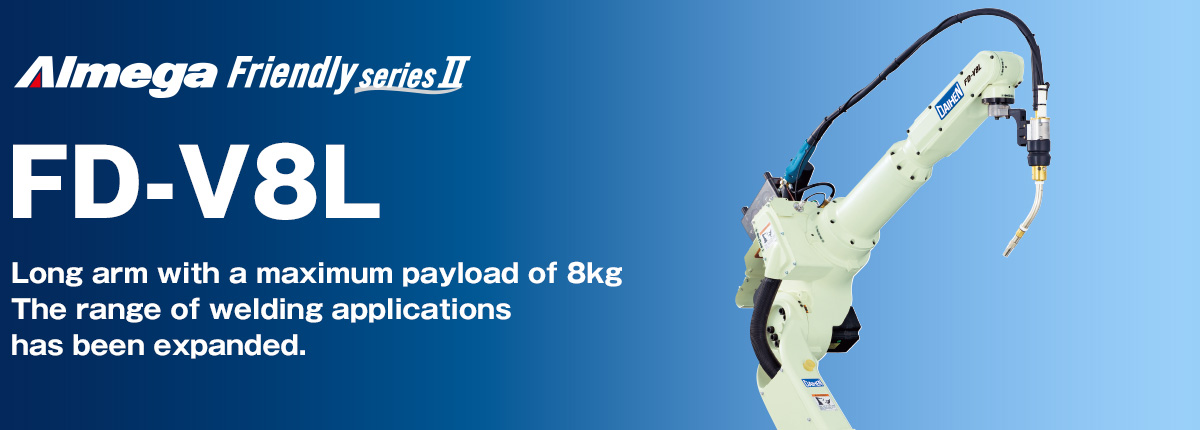

AImega Frendly series FD-V8L Well suited for a variety of applications with large workpieces. AImega Frendly series FD-V8L Well suited for a variety of applications with large workpieces.

Main features

  • Faster
    cycle time

    Due to the industry’s fastest speeds,cycle times are reduced.

  • Slim design

    30% reduction in footprint compared to current models.High-density layout for complex systems.

  • User-friendly operation

    All cables required for Synchro-feed welding are also built in the lower arm. Avoiding the interference behind the arm.

Specifications

Item
Specifications
Model name
NV8L
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
8kg
Weight
237kg
Load of Upper Arm
20 kg (*)

(Note) The capacity of the upper arm varies with the wrist capacity.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
