AImega Frendly series FD-BT6 Allows for the ultimate in ease of use. Built-in cables with 7th-axis flexibility. AImega Frendly series FD-BT6 Allows for the ultimate in ease of use. Built-in cables with 7th-axis flexibility.

Main features

  • Flexibility for simple posture changes.

    The welding torch position and angle can be maintained while changing the robots posture.

  • Simple manual operation realized

    While teaching for a 7-axis robot tends to be a complex operation, Daihen's Synchro-motion technology maintains torch attitude and angle while teaching weld path positions.

  • The world's first ever built-in welding power cable!

    The welding power cable being built into the 7th axis robot is the first of its kind. Teaching can be done without concern of interference with jigs or workpieces.

Explanation video

  • Video

    Automation utilizing existing equipment and spaceRobot system package for sheet metal processing

  • Video

    Full circumferential welding with a 7-axis robot.


  • Video

    7-axis robot performance video



  • Video

    Multi-arm coordinated welding with our 7-axis robots.

  • Video

    Parts loading/unloading to the machine tool by 7-axis robot

Specifications

Item
Specifications
Model name
NBT6
Structure
Vertical articulated type
Number of Axes
7
Wrist payload
6kg
Weight
185kg
Load of Upper Arm
10kg(*)

(Note) When loading the Max. payload capacity as the end effector.
These specifications are subject to change without prior notice.

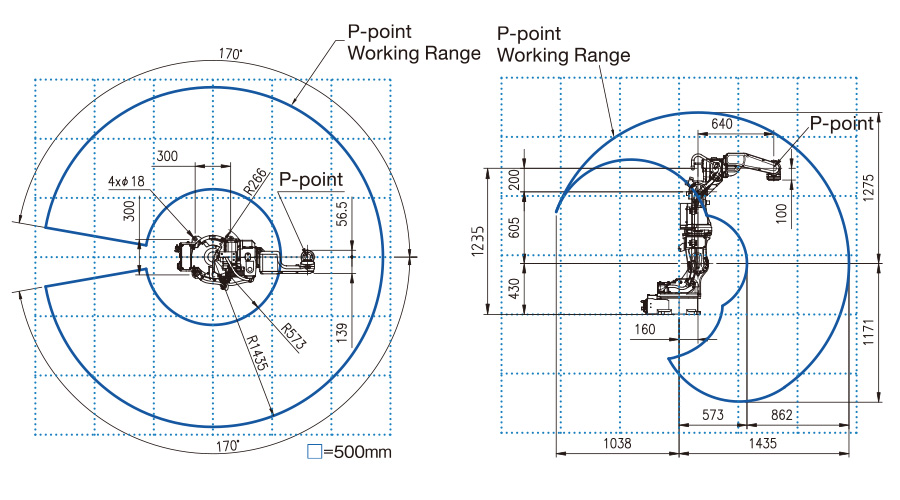

Working Range

Working Range
Working Range
  • Product catalog
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
