AImega Frendly series FD-V80/V100/V130 Three new models 100-kg payload class handling robots. AImega Frendly series FD-V80/V100/V130 Three new models 100-kg payload class handling robots.

Main features

  • High-density layout is possible.

    • Avoiding the interference with jigs orworkpieces by slim design.
    • Compatible wide operating range and narrow interference radius.

  • Cycle times are reduced.

    • Due to the industry's fastest speeds.

  • Easy communication with external devices

    • Compatible with application cable of various communication standards
    • Built-in cable from robot base to shoulder.

Explanation video

  • Video

Specifications

Item
Specifications
Model Number
FD-V80
FD-V100
FD-V130
Model name
NV80
NV100
NV130
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
80kg
100kg
130kg
Weight
780kg
770kg
765kg
Load of Upper Arm
25kg

(Note) These specifications are subject to change without prior notice.

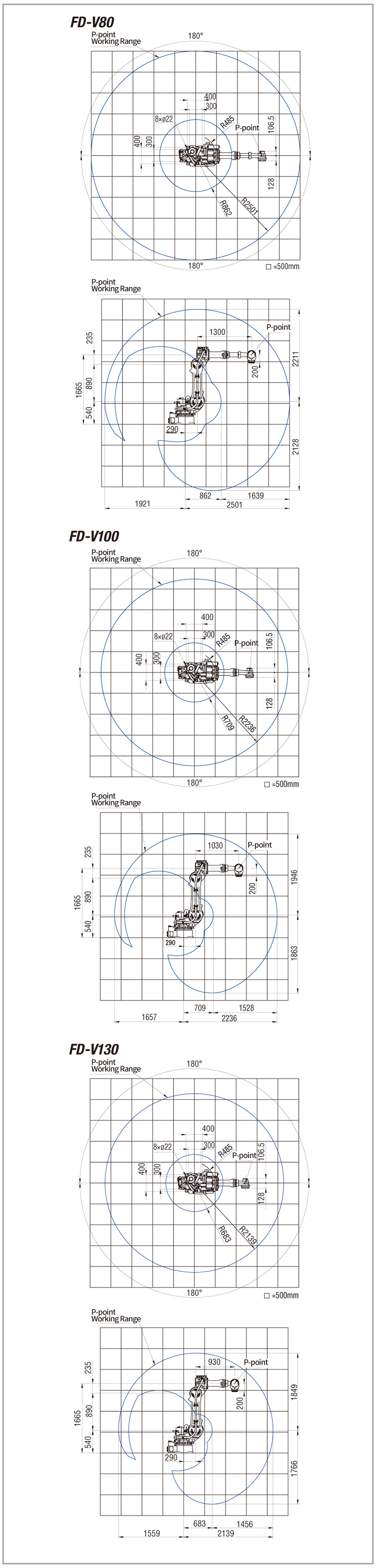

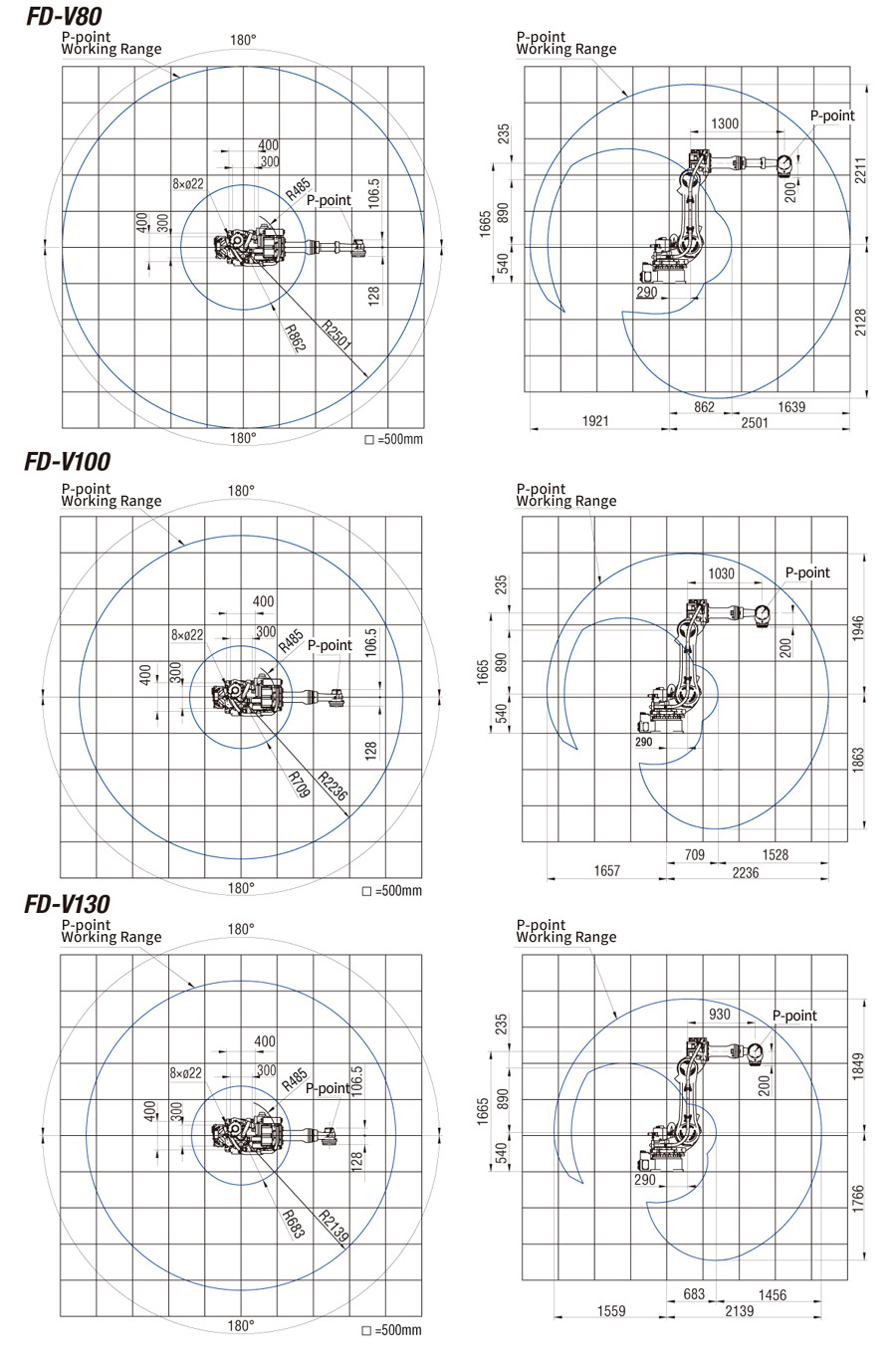

Working Range

Working Range
  • Product catalog
  • 2D CAD data
  • 3D CAD data

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
