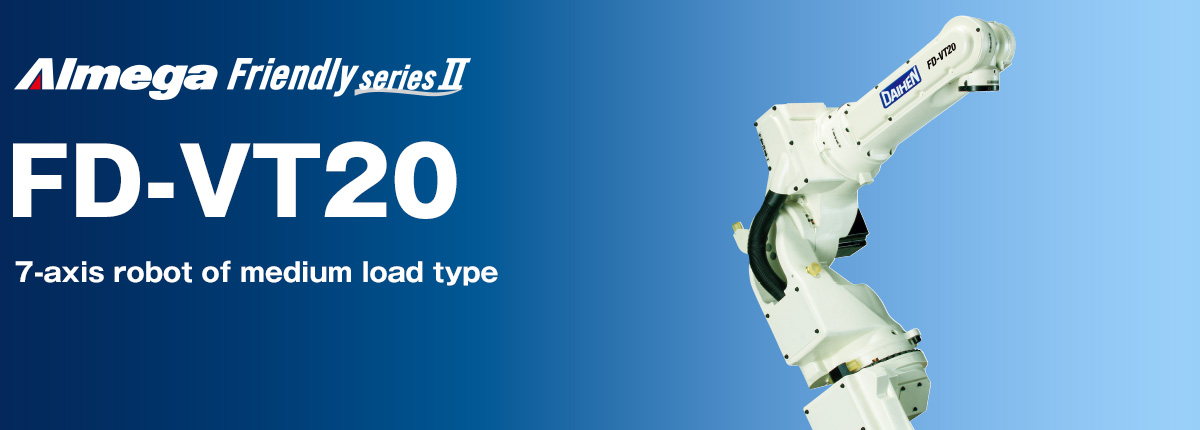

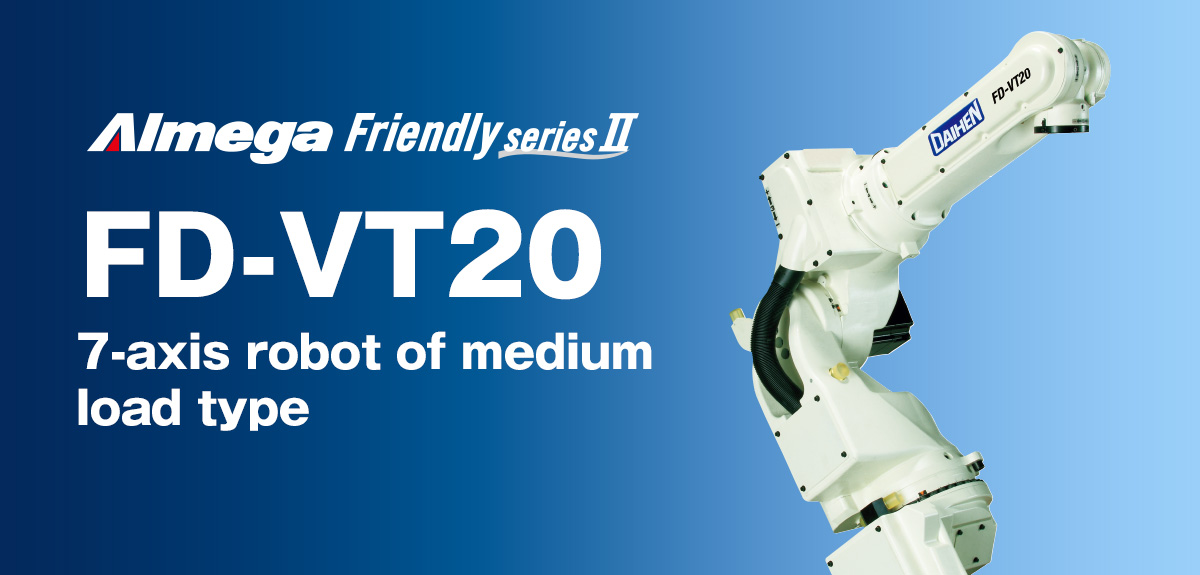

AImega Frendly series FD-VT20 Easy teaching with positioning assistance of the 7th-axis. AImega Frendly series FD-VT20 Easy teaching with positioning assistance of the 7th-axis.

Main features

  • Simple manual operation realized

    Teaching with competing 7-axis robots is cumbersome. Our simplified teaching maintains torch attitude using our exclusive Synchro-motion technology.

  • Suited for medium load material handling and welding.

    Payload 20kg. Well-suited for medium load material handling and welding.

Video

  • Video

    Automation utilizing existing equipment and spaceRobot system package for sheet metal processing

  • Video

    Multi-arm coordinated welding with our 7-axis robots.

  • Video

    High-speed sealing system

Specifications

Item
Specifications
Model name
NVT20
Structure
Vertical articulated type
Number of Axes
7
Wrist payload
20kg
Weight
336kg
Load of Upper Arm
5kg(*)

(Note) When loading the Max. payload capacity as the end effector.
These specifications are subject to change without prior notice.

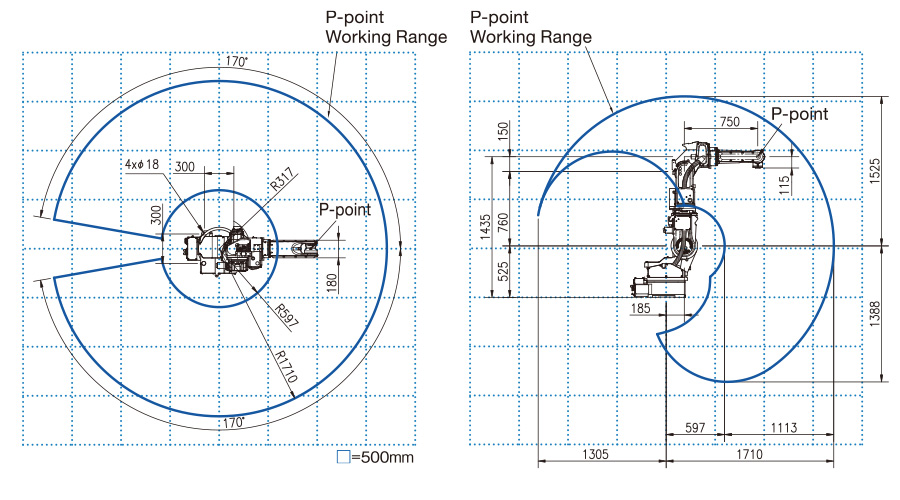

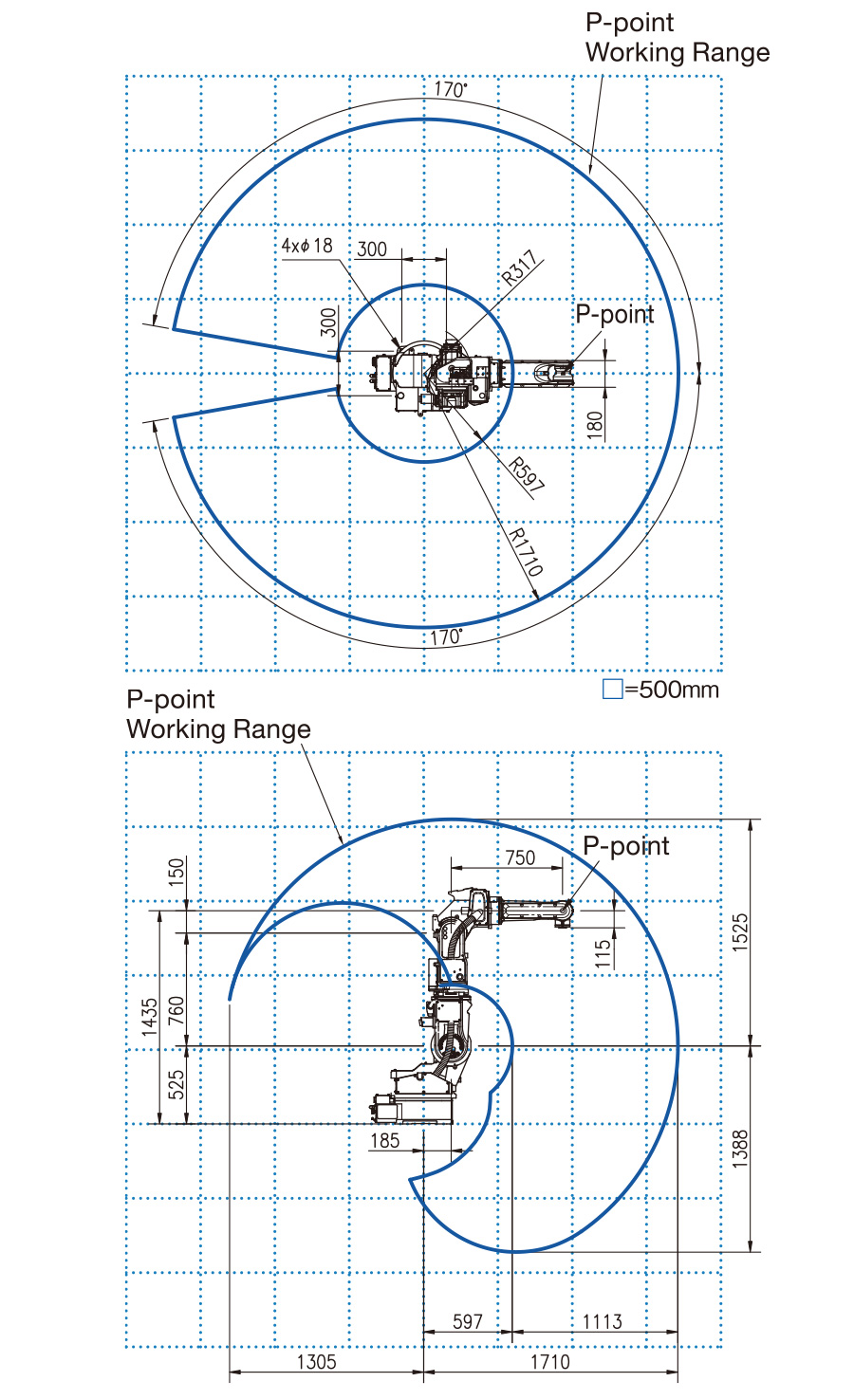

Working Range

Working Range
Working Range
