Vision Sensor Plug-and-play connection for simple installation.Vision guidance provides expansion into new applications. Vision Sensor Plug-and-play connection for simple installation.Vision guidance provides expansion into new applications.

Main features

Simple to connect.

Simplified integration via plug-and-play functionality.

Simple teaching.

Teaching new applications is simplified via dedicated commands.

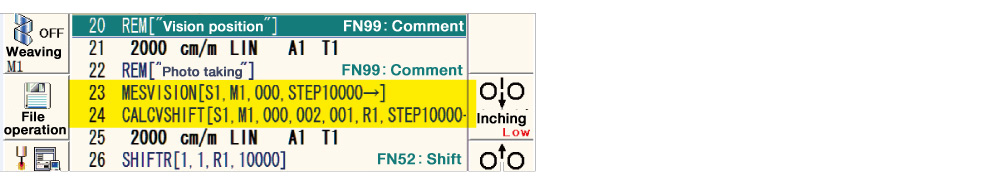

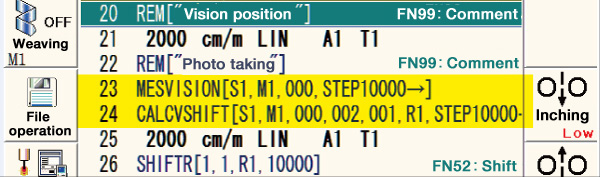

Dedicated teaching commands Dedicated teaching commands

Dedicated teaching commands

Built for shop floor applications.

Variety of camera-mounting options supporting a variety of guidance requirements.

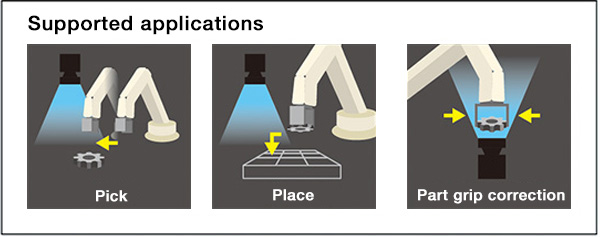

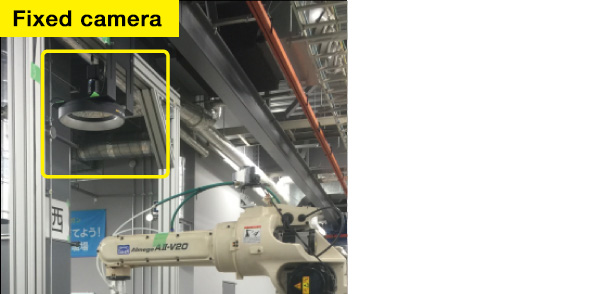

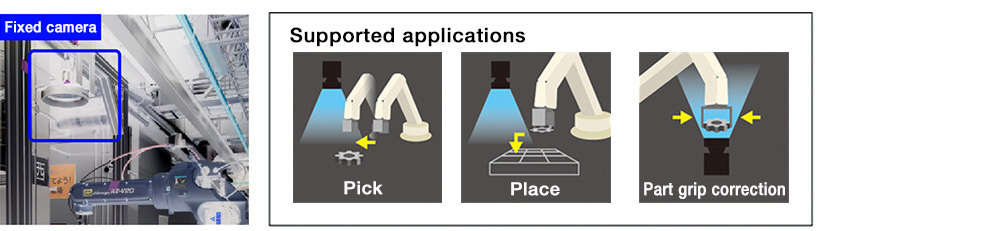

Fixed camera Supported applications [Pick,Place,Part grip correction] Fixed camera Supported applications [Pick,Place,Part grip correction]

■Fixed installation ･ Robot can operate during photo taking
･ Part grip location correction.

Fixed camera Supported applications [Pick,Place,Part grip correction]

Built for shop floor applications.

Variety of camera-mounting options supporting a variety of guidance requirements.

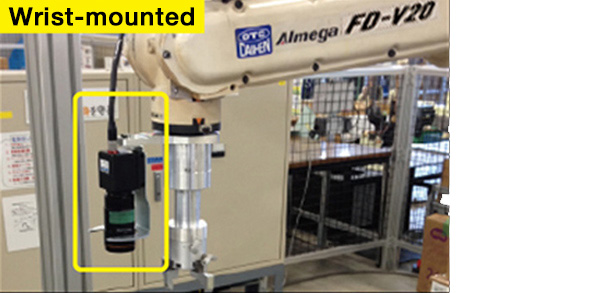

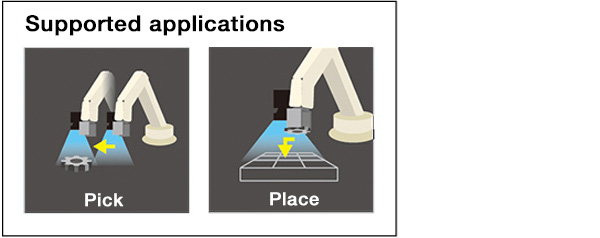

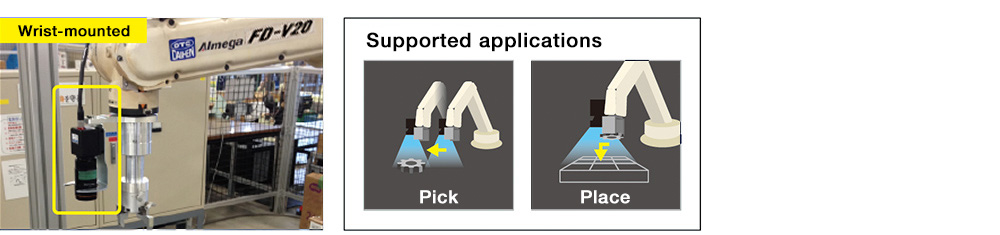

Wrist-mounted Supported applications [ Pick Place ] Wrist-mounted Supported applications [ Pick Place ]

■Arm-mounted ･ Camera position and viewing angle adjustable

Wrist-mounted Supported applications [ Pick Place ]

Explanation video

Video

Multi-arm coordinated welding with our 7-axis robots. With the coordinated operation of the robot, dedicated jigs aren't needed for cutting
costs, and setup times were greatly shortened.

Main sprcifications

Available models

KEYENCE CV-X SERIES

Applicable range

Compatible models
Almega All Friendly Series models
Number of units that can be combined
Each robot controller supports 4 cameras via 1 controller
