AImega Frendly series FD-B6 Fast, slim and increased payload.Advanced overall performance and built in cable. AImega Frendly series FD-B6 Fast, slim and increased payload.Advanced overall performance and built in cable.

Main features

  • Fast

    Fastest cycle times in the industry, resulting in to shorter takt time.

  • Powerful

    Payload is 6kg, providing surplus payload for torch and sensor models.Accommodates advanced welding technologies such as Synchro-feed and Cold Tandem.

  • Tough

    IP64 environmental raiting: dust-proof and rainproof.

  • Fast
  • Fastest cycle times in the industry,
    resulting in to shorter takt time.

  • Slim

    Built-in wrist motor eliminates
    interference with jigs and workpieces.
    Slim arm enables high-density installations.

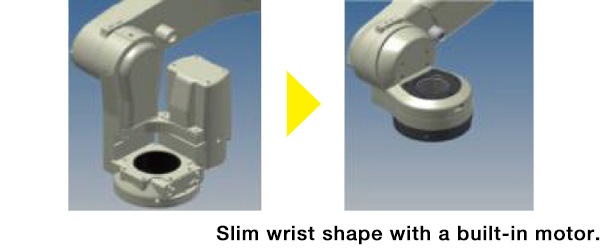

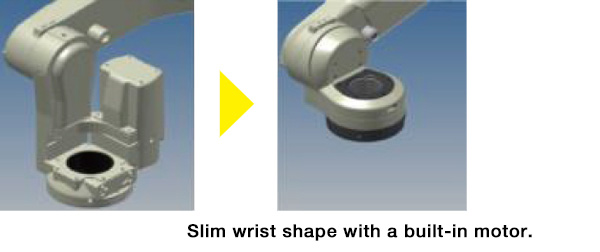

  • Slim wrist shape with a built-in motor. Slim wrist shape with a built-in motor.
  • Easy to use

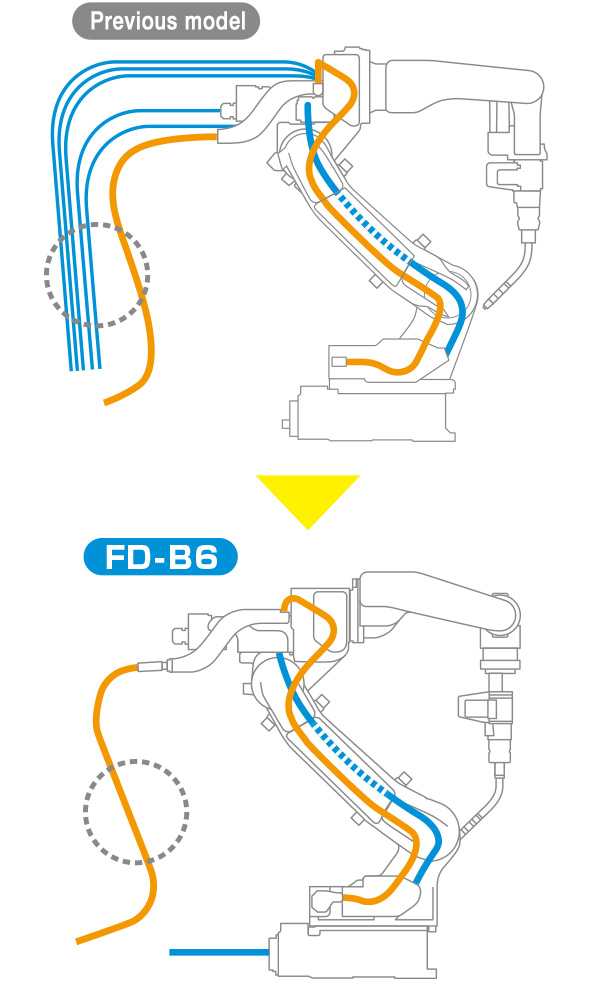

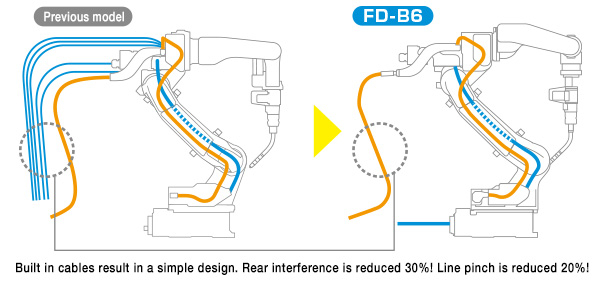

    Synchro-feed welding cables are built into the arm.
    Eliminates the interference normally
    caused by weld cables behind the arm.
    A signal line and air hose are also built-in,
    supporting a variety of advanced tools.

  • supporting a variety of advanced tools. supporting a variety of advanced tools.

    The built in cable prevents interference behind the arm.

  • Powerful
  • Payload is 6kg, providing surplus payload for torch and sensor models.
    Accommodates advanced welding technologies such as Synchro-feed and Cold Tandem.

  • Tough
  • IP64 environmental raiting: dust-proof and rainproof.

Specifications

Item
Specifications
Model name
NB6
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
6kg
Weight
145kg
Load of Upper Arm
10kg

※These specifications are subject to change without prior notice.

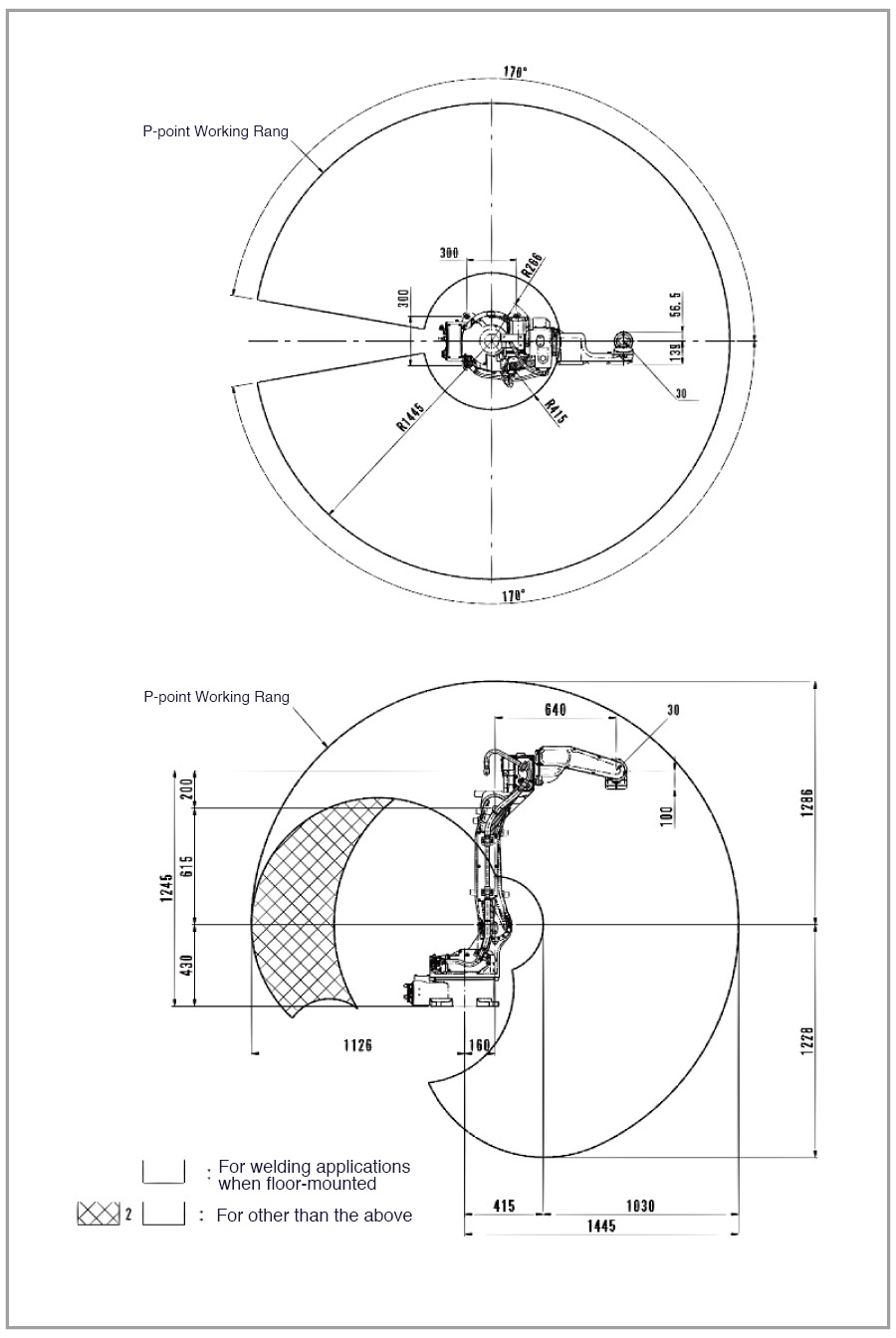

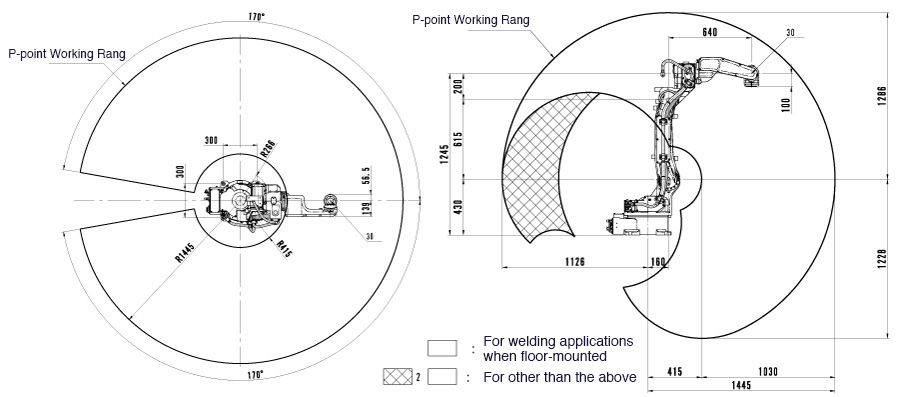

Work envelope.

Work envelope.
  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
