AImega Frendly series FD-V8 A versatile robot that accommodates all types of applications. AImega Frendly series FD-V8 A versatile robot that accommodates all types of applications.

Main features

  • Handling
    Optimal use
  • · Many cables and air hoses are built - in, and assorted advanced tools are accommodated.
    · Corresponds to IP54 and is dust-proof and rainproof.

  • Payload upped,
    streamlined and speediest
    arm in the industry
    realized
  • · Payload upped 1.3 times to 8kg. Diverse sensors can be installed and it accommodates AI.
    · Speed of all axes upped (maximum 15%). Highest speed specs in the industry realized with shorter tact time.
    5% slimmer lower arm realized. Accommodates high density installations.

  • Reduced weight
    robot arm realized.
  • Weight reduction 3% to140kg realized.
    With suspension or wall mount systems, equipment installation cost is reduced.

  • Easy to use
    robot system
    with minimal
    interference realized
  • · All the cables except the conduit and one wire power cable are built into the arm. It’s ideal for high end welding such as Synchro-feed.
    · The cable behind the arm is gone decreasing interference. The back interference area is reduced about 30%. The spacing between robots is reduced about 20% enabling high density installations. Contributes to reducing line length.

Main use

  • Arc welding
    Handling

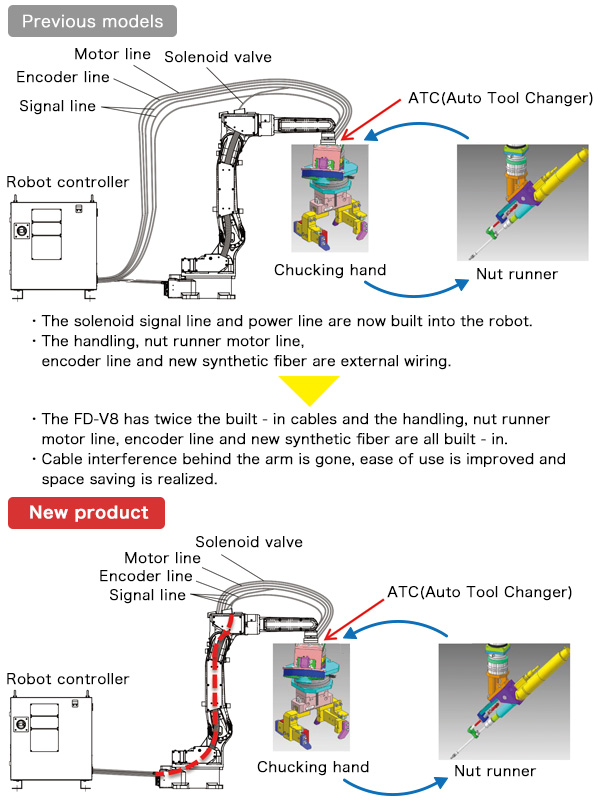

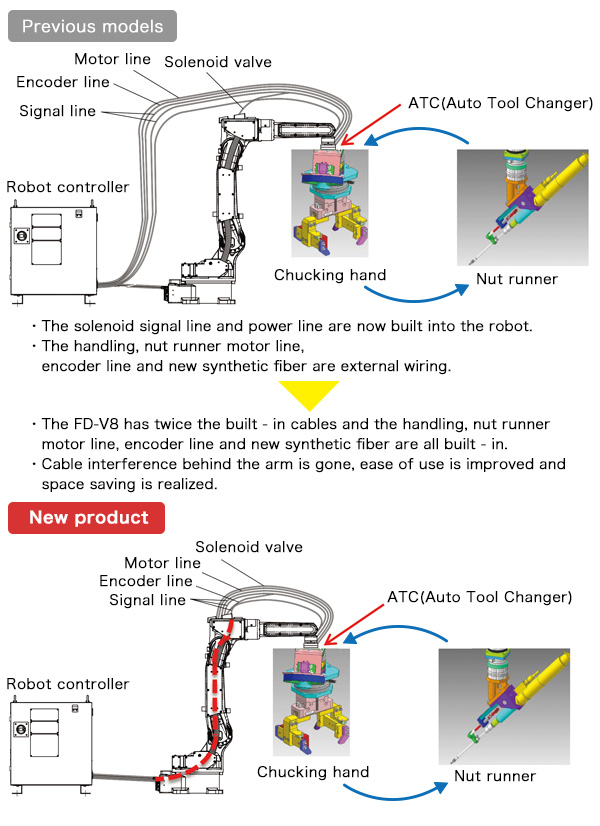

  • The FD-V8 has twice the built - in cables and the handling, nut runner motor line, encoder line and new synthetic fiber are all built - in. Cable interference behind the arm is gone, ease of use is improved and space saving is realized. The FD-V8 has twice the built - in cables and the handling, nut runner motor line, encoder line and new synthetic fiber are all built - in. Cable interference behind the arm is gone, ease of use is improved and space saving is realized.
  • Best performance
    robot arm in the industry.
  • Specifications Features Notes
    Shape Small compact body 5% down (*)
    Maximum speed Highest speed in the industry 15% up*1
    Maximum reach Best in the industry
    1437mm
    35mmup (*)
    Built - in app cable Best 24 conductor in the industry
    · Accommodates tool driving motors
    · Controller signal for tool controller type equipment
    Double*1
    Pay load 8kg 1.3times (*)
    Accommodates cold tandem and a installed sensor
    Standard compliant Corresponds to IP54 (wrist axis) Dust-proof and rainproof
    (Note) Compared to our previous model FD-V6

Specifications

Model name FD-V8
Pay load 8kg
Range of movement J1 axis (rotation) ±170°(±50°)(*)
J2 axis(Forward/back ) -155° to +90°
J3 axis(Up/down) -170° to +190°
J4 axis(Rotation ) ±180°
J5 axis(Swing) -50° to +230°
J6 axis(Twist) ±360°
Maximum reach distance 1437 mm
Minimum reach distance 396 mm
Forward and back reach distance 1041 mm
Maximum speed J1 axis (rotation) 4.19rad/s{240°/s} (3.32rad/s{190°/s})(*)
J2 axis(Forward/back ) 4.19rad/s{240°/s}
J3 axis(Up/down) 4.01rad/s{230°/s}
J4 axis(Rotation ) 7.50rad/s{430°/s}
J5 axis(Swing) 7.50rad/s{430°/s}
J6 axis(Twist) 11.00rad/s{630°/s}
Weight 140kg
(Note) Specifications for wall mounting appear in parentheses.

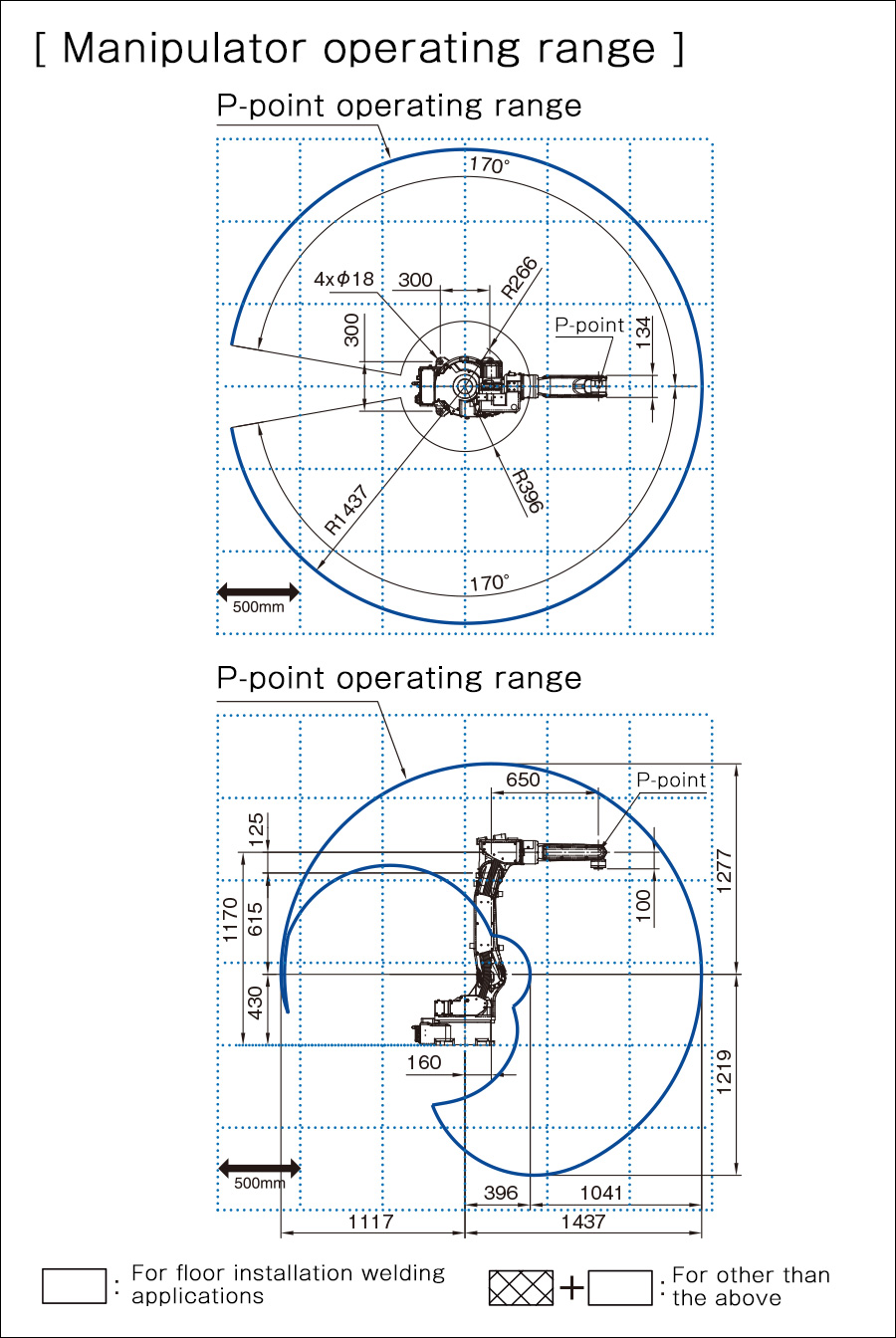

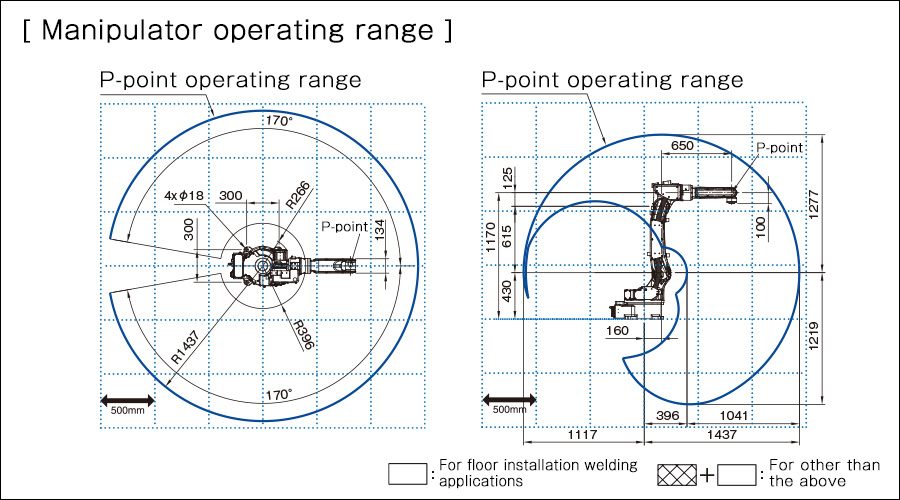

Operating range diagram

Operating range diagram
  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
