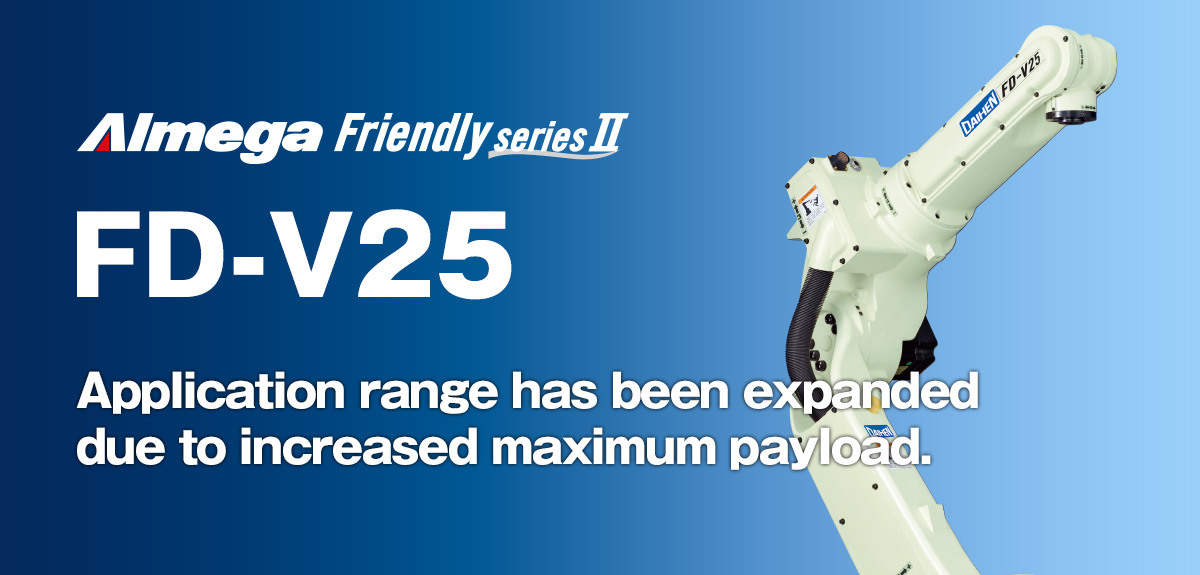

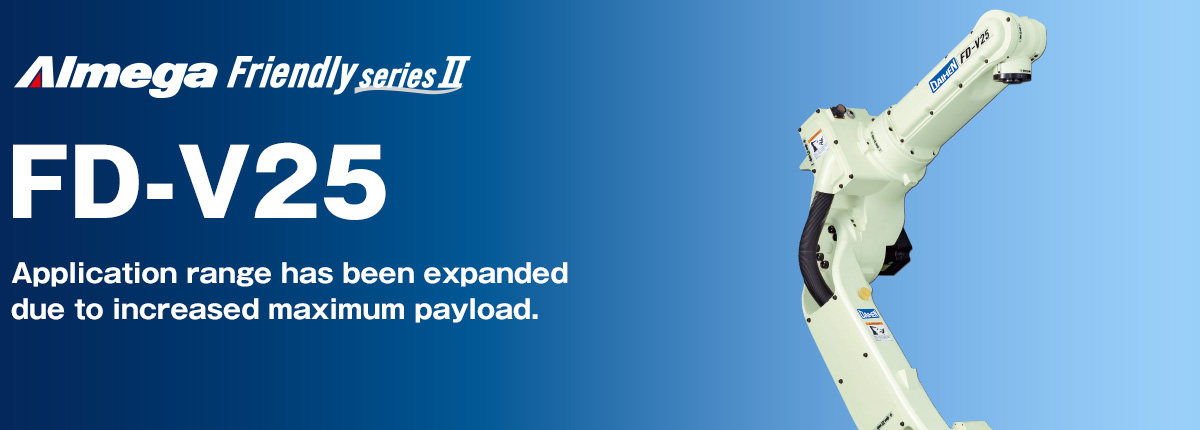

AImega Frendly series FD-V25 Shows its strength in moderate material handling and welding applications. AImega Frendly series FD-V25 Shows its strength in moderate material handling and welding applications.

Main features

  • Faster cycle time

    Due to the industry’s fastest speeds, cycle times are reduced.

  • Slim design

    30% reduction in footprint compared to current models.High-density layout for complex systems.

  • User-friendly operation

    Integrated signal cables and air hoses to accommodate a variety of end effectors

Specifications

Item
Specifications
Model name
NV25
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
25kg
Weight
241kg
Load of Upper Arm
10kg(Wrist capacity: 25kg)(*)

(Note) The capacity of the upper arm varies with the wrist capacity.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
