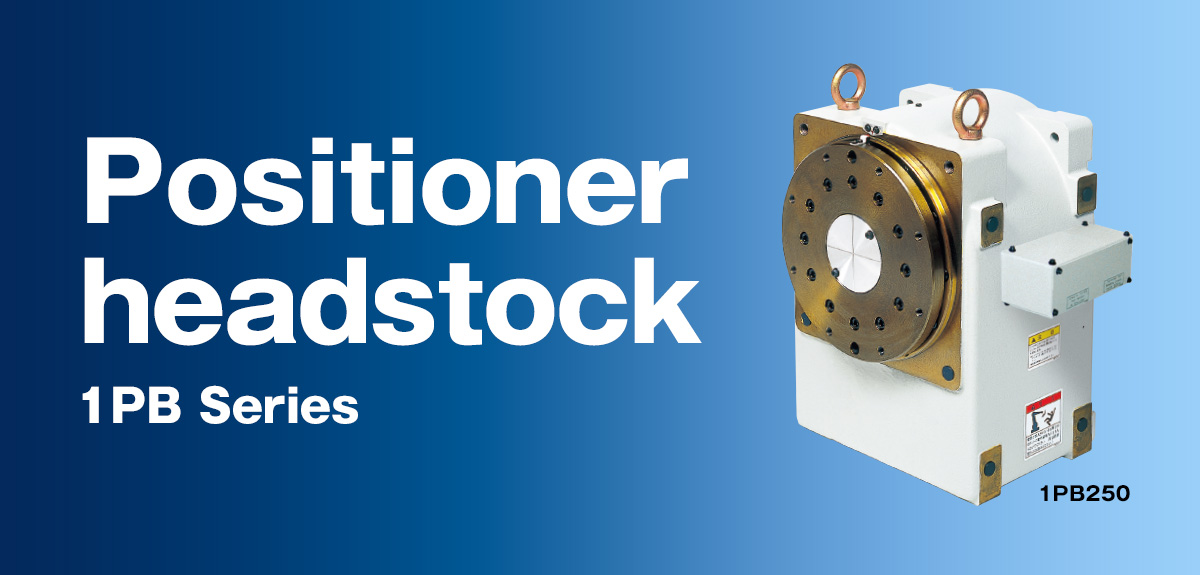

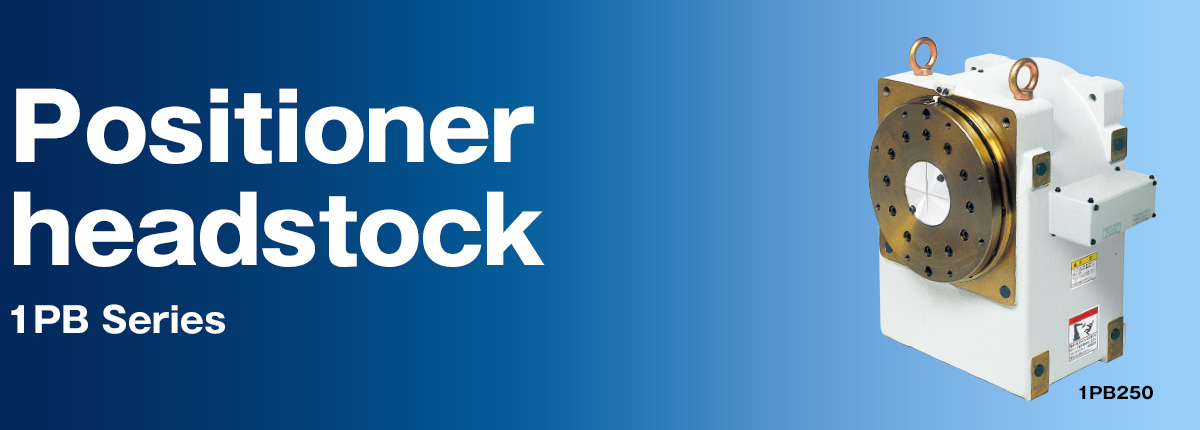

Main features
- A wide variety of jig systems can be constructed due to the large degree of freedom in the installation orientation.
- There is a hollow hole through the center of the rotary table, making it easy to pass cables and hoses.
Specifications
- Shape
- A2PF301-JNN
- A2PF501-JNN
- A2PF1001-JNN
- Max. payload
- 250kg
- 500kg
- 1000kg
- Spin speed max
- 2.6rad/s(150°/s)
- 2.1rad/s(120°/s)
- 1.3rad/s(72°/s)
- Maximum allowable load moment
- 206N.m
- 490N.m
- 1078N.m
- Repeatability
- ±0.08mm
(Position of R250)
- ±0.08mm
(Position of R250)
- ±0.08mm
(Position of R250)
- Stop position
- Arbitrary
- Arbitrary
- Arbitrary
- Mass
- 110kg
- 170kg
- 220kg
