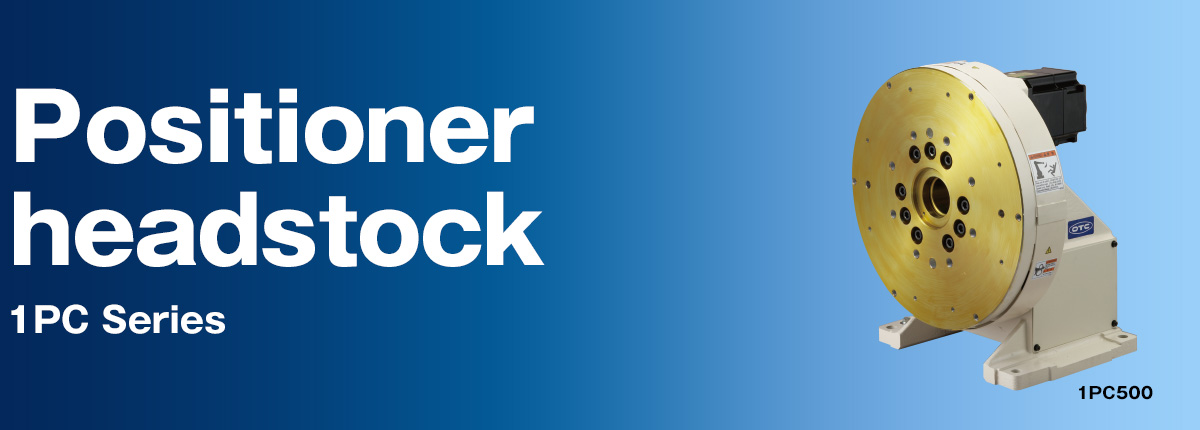

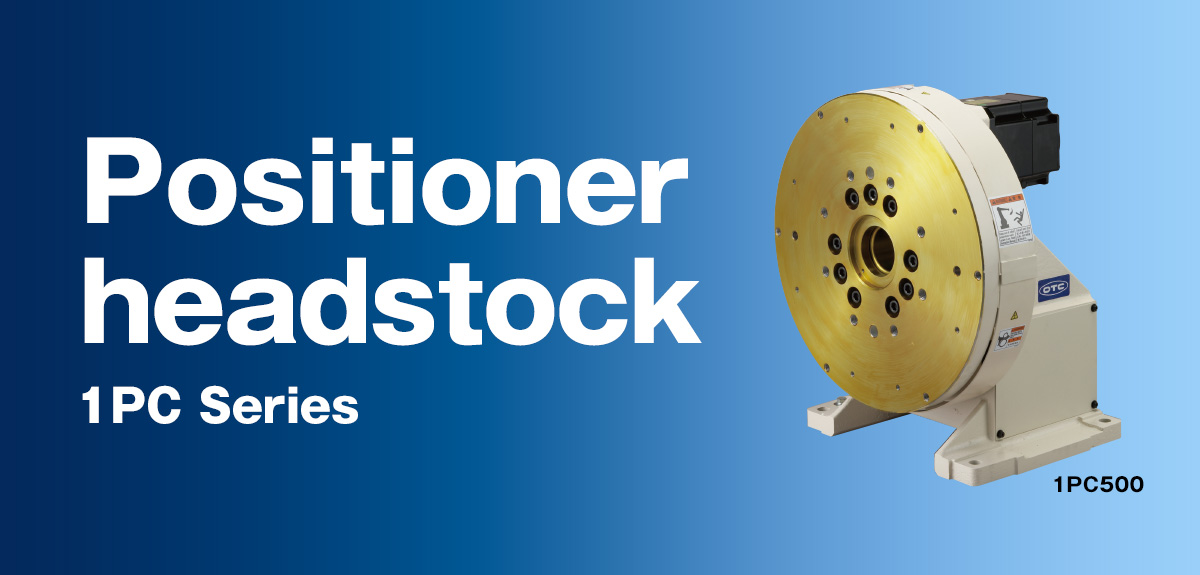

Main features
- Light weight, compact and easy to install.
- There is a hollow hole through the center of the rotary table, making it easy to pass cables and hoses
Specifications
- Shape
- 1PC500
- 1PC1000
- Max. payload
- 500kg
- 1000kg
- Spin speed max
- 2.1rad/s(120°/s)
- 1.3rad/s(72°/s)
- Max. allowable load moment of table shaft
- 490N.m
- 1078N.m
- Repeatability
- ±0.1mm(Position of R300)
- ±0.1mm(Position of R300)
- Stop position
- Arbitrary
- Arbitrary
- Mass
- 110kg
- 193kg
