Main features

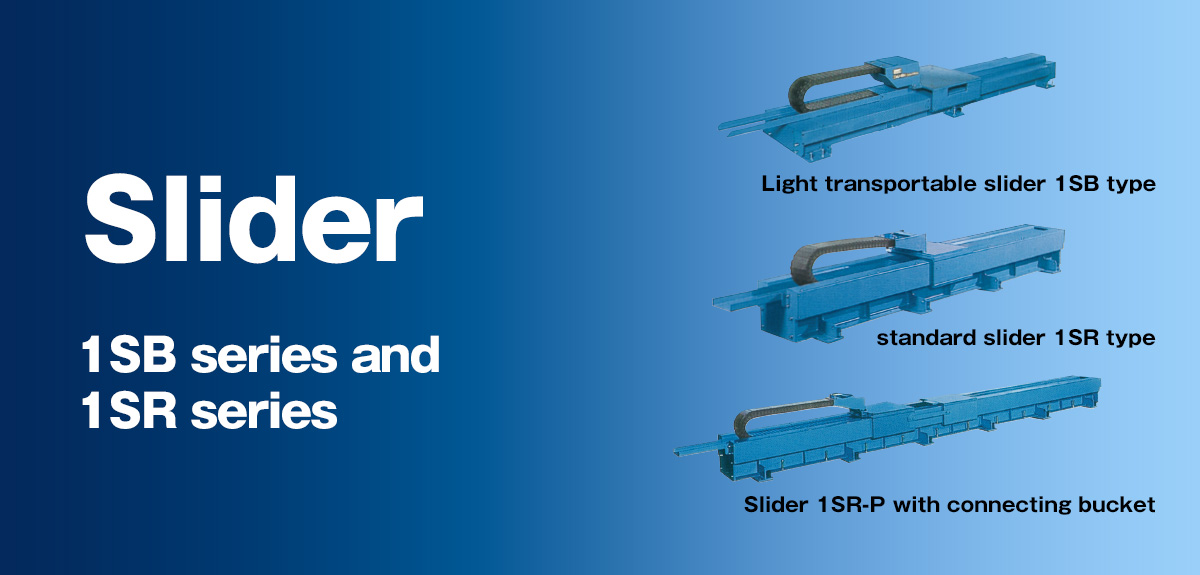

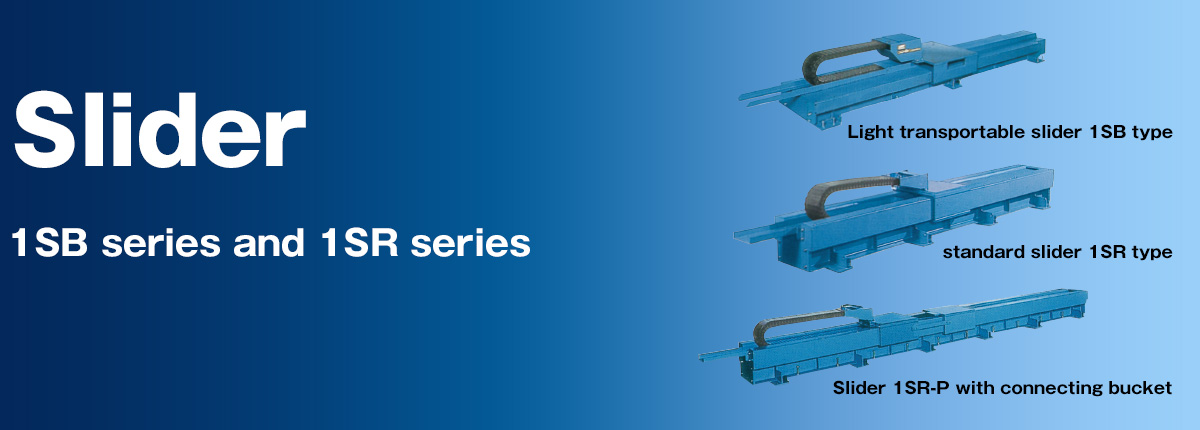

- Light object transportable slider 1SB type/standard slider 1SR type
- ・Max. payload 330kg.
・The dust-proof structure prevents spatter, oil, and dust from entering. - Slider with connecting cart 1SR-P type
- ・The pack wire can be mounted on the cart connected with the robot mounting part.
・The dust-proof structure prevents spatter, oil, and dust from entering.
Specifications
Light object transportable slider 1SB type
- Shape
- A2SB102-J
- A2SB202-J
- Moving stroke
- 1000mm
- 2000mm
- Maximum tool-up speed
- 0.3m/s
- Max. payload
- 330kg
- Repeatability
- ±0.1mm
- Overall length
- 2510mm
- 3510mm
- Mass
- 450kg
- 550kg
Light object transportable slider 1SR type
- Shape
- A2SR292-J
- A2SR392-J
- A2SR492-J
- A2SR592-J
- A2SR692-J
- Moving stroke
- 2900mm
- 3900mm
- 4900mm
- 5900mm
- 6900mm
- Maximum tool-up speed
- 0.295m/s
- Max. payload
- 330kg
- Repeatability
- ±0.1mm
- Overall length
- 4500mm
- 5500mm
- 6500mm
- 7500mm
- 8500mm
- Mass
- 650kg
- 750kg
- 850kg
- 950kg
- 1050kg
Slider 1SR-P with connecting bucket
- Shape
- A2SR19P2-J
- A2SR29P2-J
- A2SR39P2-J
- A2SR49P2-J
- A2SR59P2-J
- Moving stroke
- 1900mm
- 2900mm
- 3900mm
- 4900mm
- 5900mm
- Maximum tool-up speed
- 0.295m/s
- Max. payload
- 660kg(However, every table 330kg)
- Repeatability
- ±0.1mm
- Overall length
- 4500mm
- 5500mm
- 6500mm
- 7500mm
- 8500mm
- Mass
- 800kg
- 900kg
- 1000kg
- 1100kg
- 1200kg
