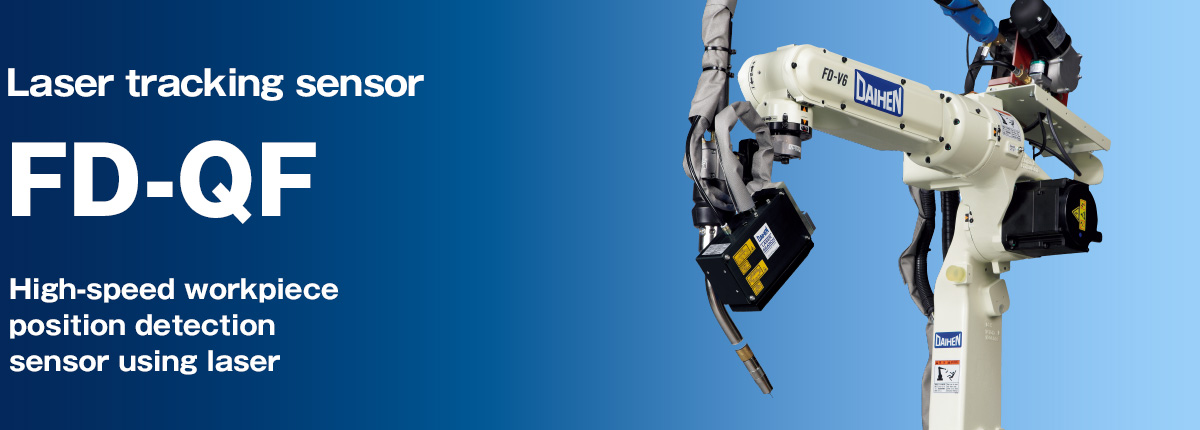

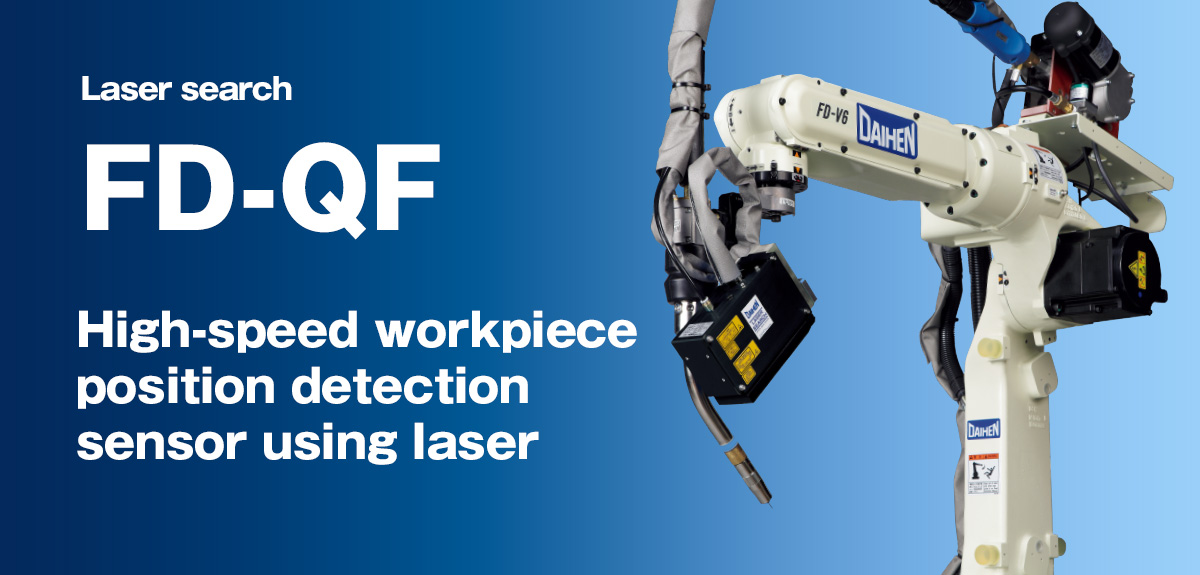

Laser search FD-QF High-speed workpiece position detection sensor using laser Laser search FD-QF High-speed workpiece position detection sensor using laser

Main features



  • Industry-best weld seam detection: fastest detect time (0.3 sec), highest accuracy (±0.2mm).

  • Simplified teaching with dedicated detection commands.

  • Incorporates the touch-screen display of our Teach Pendant to simplify the setting of weld seam detection conditions.

  • Stable weld seam detection, even on high-gloss surfaces such as aluminum or stainless steel, via the application of our blue laser and 2D sensor head.

Video

  • Video

    Workpiece position detection sensor using a 2D laser

Specifications

Workpiece position sensing
○The maximum one-way displacement detection rate is about 0.3 seconds.
Welding line copy
×
Weld joint profile detection
○
Supported sensor combinations
Touch sensor Arc sensor or TIG arc sensor with search speeds of 100cm or less.
Suitable workpieces
Plate thickness 0.5mm and greater
Accuracy
±0.2mm(Note: Requires stable weld seam cross sectional shape.)
Workpiece material


Can be used together with a combination of a touch sensor, arc sensor or TIG arc sensor with search speeds of 100cm or less. While nonmetals are acceptable, the part cannot be glossy.
