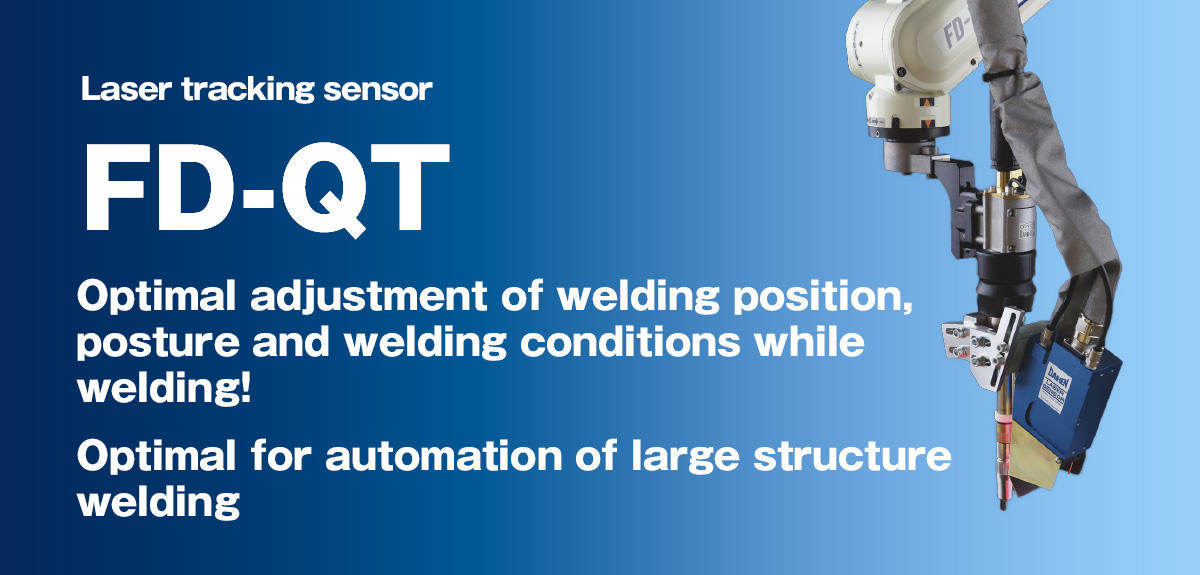

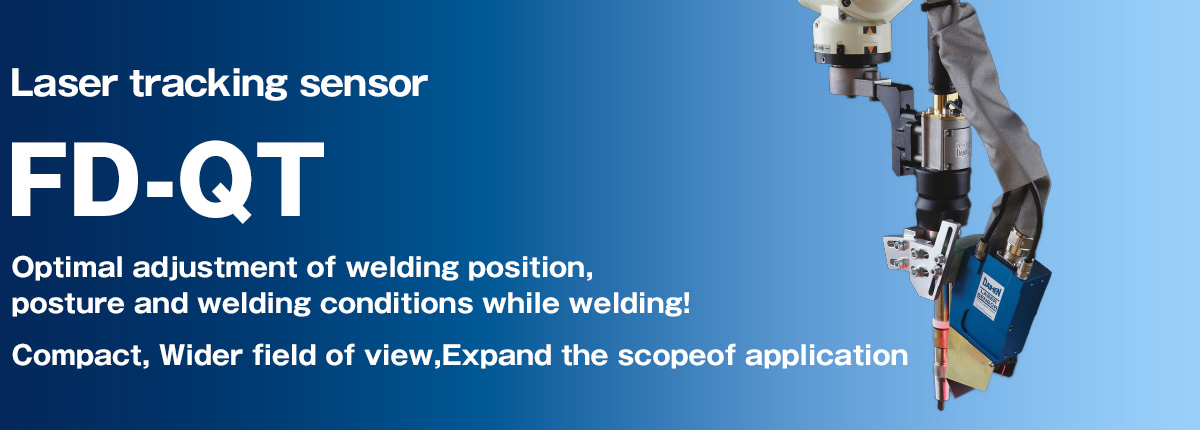

Main features
-
Productivity and welding quality up
· Senses position and gap amount changes during welding
· Automatically adjusts torch position, angle and welding conditions -
Sensor system for arc welding developed by Daihen
· Improved environment resistance and reliability
· Speedy maintenance when malfunction occurs -
Shorter teaching time
· Automatic sensing of start point and end point
· Different length welding also accommodated with 1 program -
Simple teaching
· 100% hand held operation with just the teaching pendant
· PC operation not required
Specifications
- Specifications
- Laser sensor
- Robots can be combined
- FD-H5/ B6/V6/V6L/V20/V20A
- Controllers can be
combined - FD11
- Laser light source
- Visible red laser diode/ Class 3B
- Outside dimension(W×D×H)
- 105×86×44.8mm
- Weight
- 0.89kg
- Cooling method
- Forced-air cooling with dry air
(optional water cooling block available) - Maximum tracking speed
- 200cm/min
- Tracking accuracy
- ±0.4mm
- Cover glass presence sensing
- Available
- Head cable attachment
- Possible
- PC necessity
- Not needed
- Automatic adjustment of welding conditions
- Available
