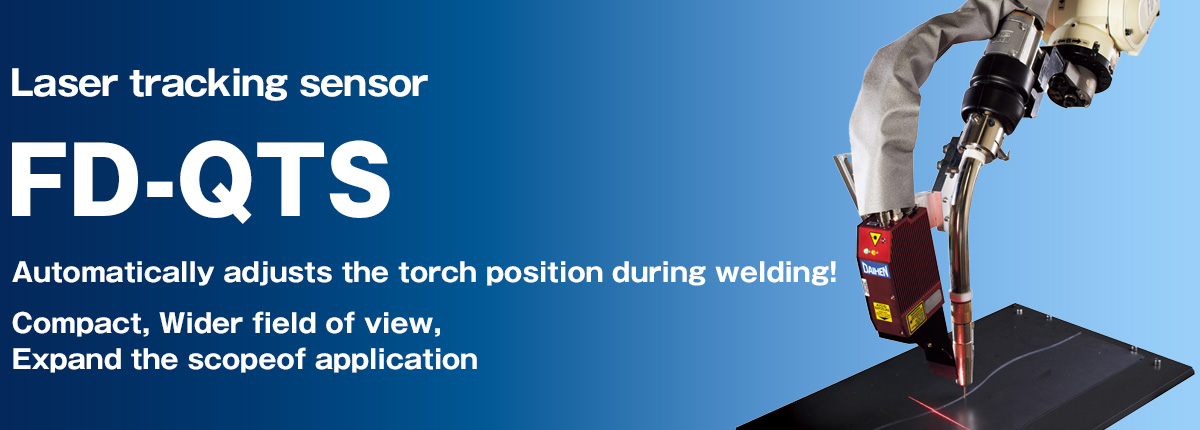

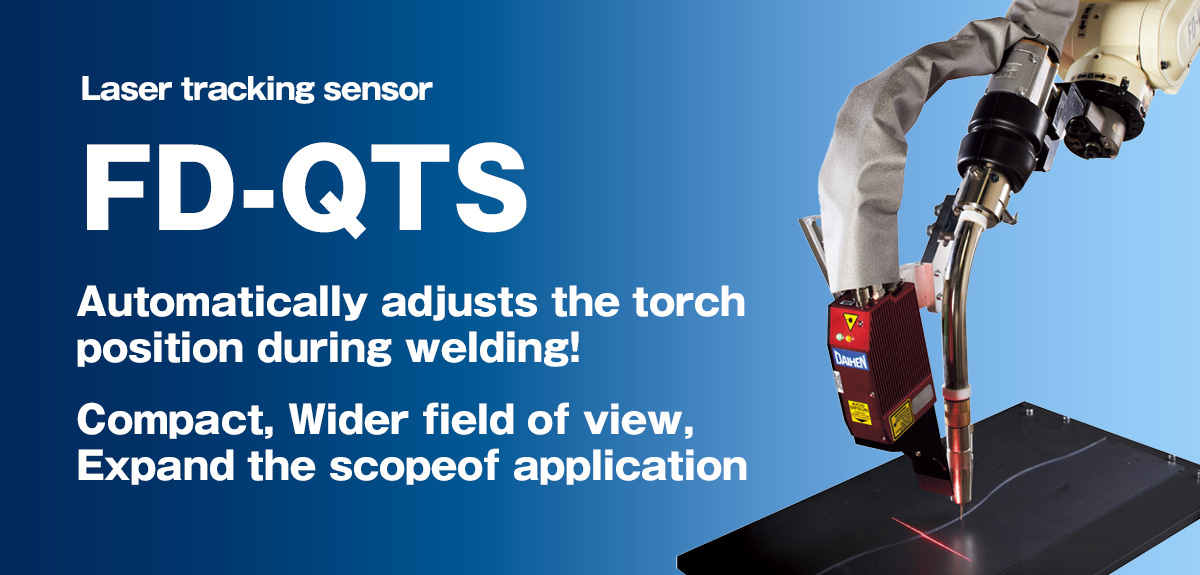

Main features
-
Improved welding quality
During welding, torch position, angle and welding conditions can be adjusted automatically based on the detected welding position and gap, to prevent faulty welding. -
Ultra-high speed tracking
Tracking speed up to 1000cm/min!
It can be used for tracking high-speed welding such as laser hybrid welding. -
Easy teaching
All operations can be performed from a teaching pendant.
A PC is not required.
Specifications
- Specifications
- Synchronized laser triangulation
- Robots can be combined
- FD-V8/V8L/V25/A20/B6(*1)/B6M(*2)/B6L(*3)/H5/V6S/V6LS/V20S
- Controllers can be combined
- FD19
- Number of available combinations
- 1set of this sensor per a robot,
and 2set of this sensor per robot controller(*4) - Applicable torch(*5)
- RT3500H,RT5000H,RZ3510H,RTW5000H,RZW5000H
- Laser light source
- Red visible laser diode / Class 3B Laser Product
- Outside dimension(W×D×H)
- 115×41×69 mm (Excluding the protrusion)
- Weight
- About 0.5 kg
- Cooling method
- Forced-air cooling with dry air
(optional water cooling block available) - Maximum tracking speed
- 1000 cm/min
- Tracking accuracy
- ±0.4mm
Login
*User registration is necessary to download CAD data.
*1:This sensor cannot be mounted on NB4S , NB4LS , NB15 G type and large robot
*2:With some types of torch and peripheral equipment, robot motion may be limited or there may be a case of unavail able combination
*3:Cont act our sal es off ice when incorporating the sensor cable into the upper arm (J4～J6) of FD-B6 FD-B6M or FD-B6L
*4:There is a limitation about the combination with other sensors.
*5:By separately manuf acturing th e sens or bracket (onerously), some other types of torch may be a vailable. For details, contactus.
