AImega Frendly series JoyPEN World class, state-of-the-art, high-accuracy robot for micro-fabrication (joining and cutting). AImega Frendly series JoyPEN World class, state-of-the-art, high-accuracy robot for micro-fabrication (joining and cutting).
A short time ROBOT teaching same as exparts for everyone. A short time ROBOT teaching same as exparts for everyone.

Main features

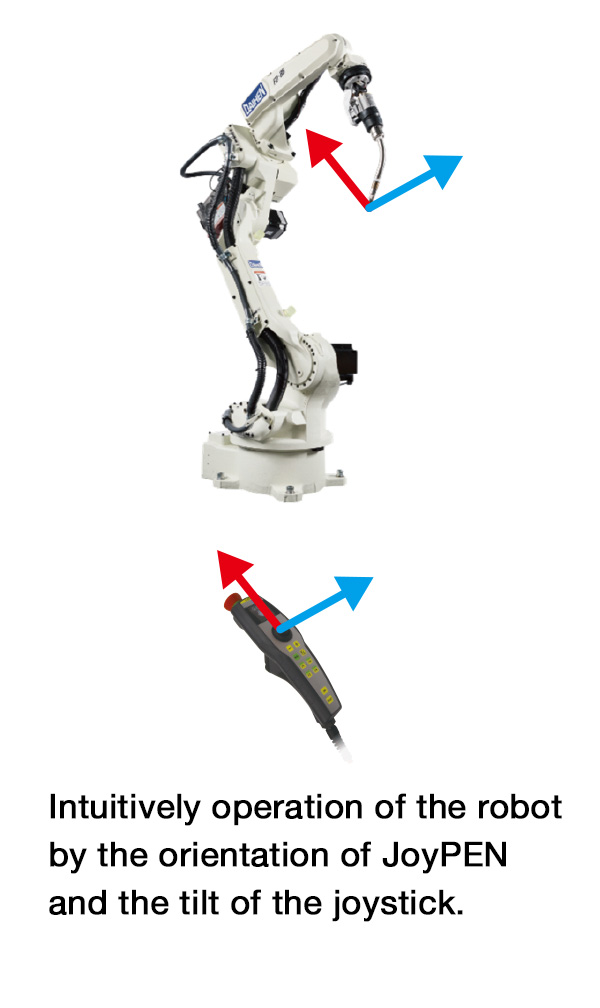

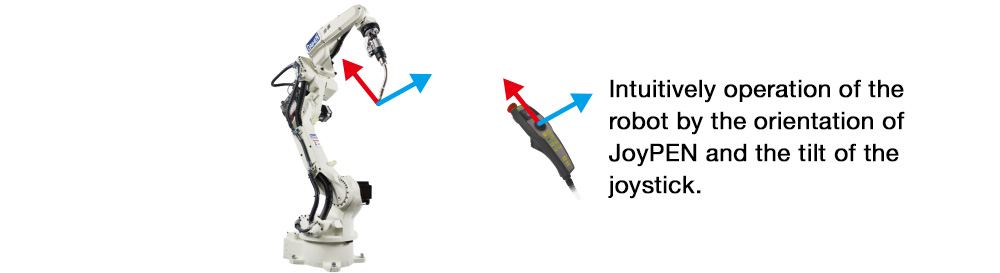

All direction operation

All direction operation All direction operation

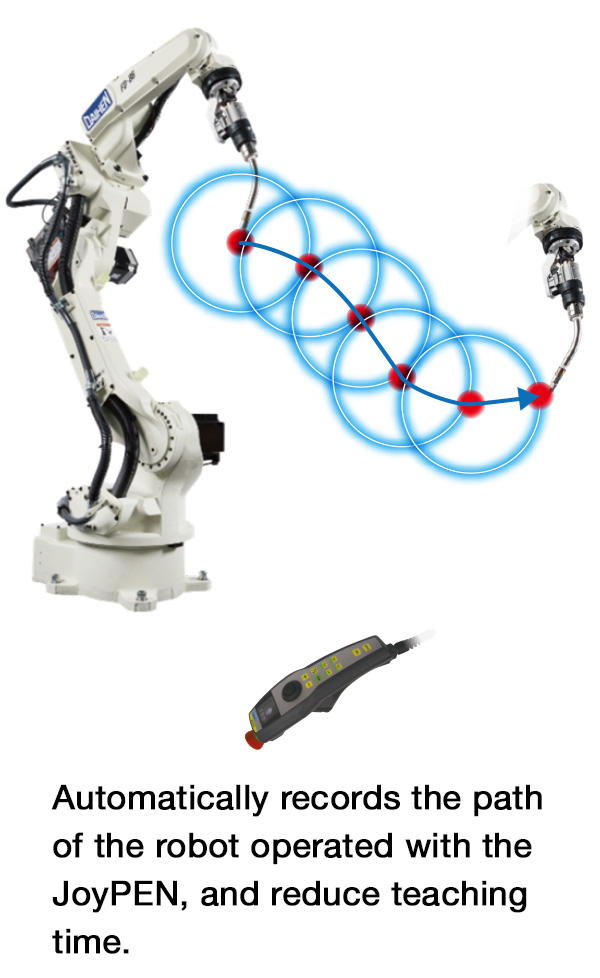

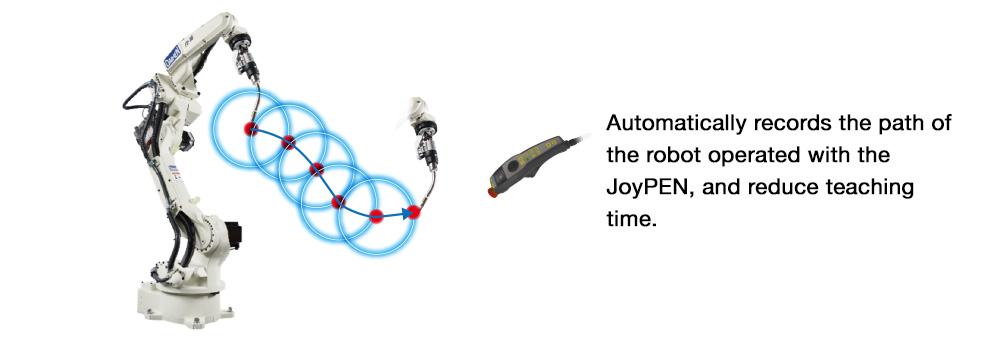

Automatic recording the operation path

Automatic recording the operation path Automatic recording the operation path

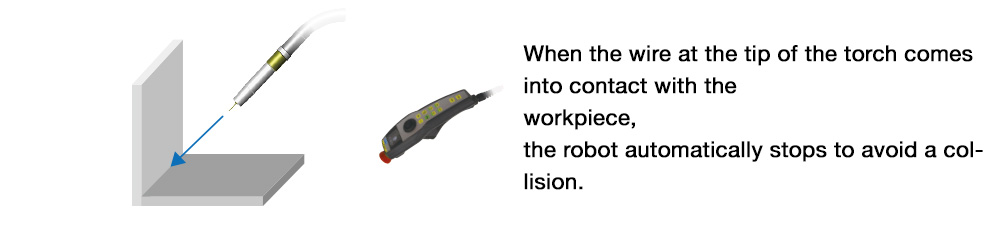

Automatic stopping the ROBOT in contact with the workpiece

Automatic stopping the ROBOT in contact with the workpiece Automatic stopping the ROBOT in contact with the workpiece

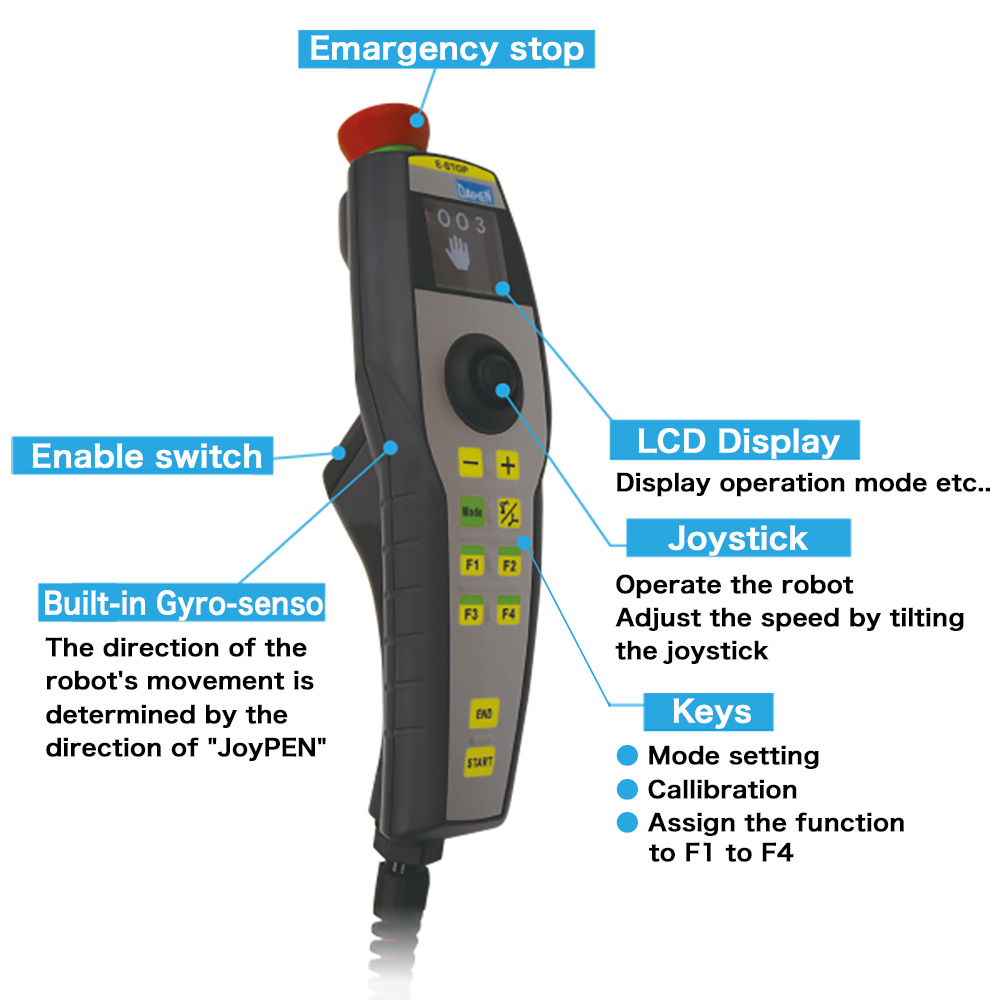

Joystick Pendant Joystick Pendant

Video

  • 動画

    Joystick pendant JoyPEN Promotion videos-Intutive operation

Specifications

Item
Specifications
Weight
250g (without cable)
LCD
1.45inch 128 × 128pixcel color
Size
62 × 210 × 78
Cable length
8m, 15m
Protection
IP54
Environment

Temperature：0 to 45℃
Humidity：20 to 80% (without condensation）

※These specifications are subject to change without prior notice.
