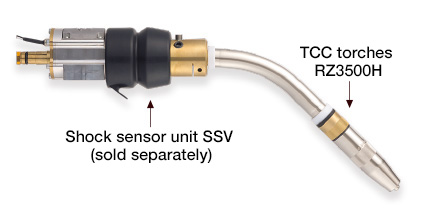

TCC torches Stable welding prevents momentary stopping and reduces consumable costs. TCC torches Stable welding prevents momentary stopping and reduces consumable costs.

Main features

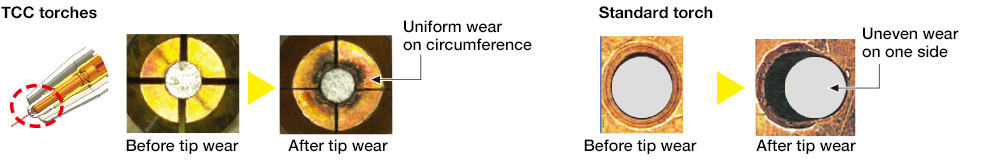

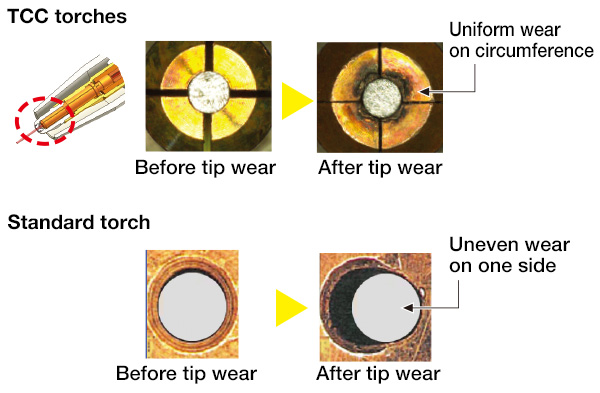

Prevents wire aiming deviation
・Suppresses wire behavior due to changes in robot posture.
・Reduces wire aiming deviation by approximately 50% when the tip is worn.
Prevents wire aiming deviation Prevents wire aiming deviation
TCC torches Standard torch TCC torches Standard torch

Improved chip durability

The durability of the tip holder is about 20 times higher than that of the conventional standard robot tip.

Realizes reliable power supply

Wire feeding is more stable than conventional standard torches, and welding quality is improved.

Specifications

Shape
MAG within rated current ()
MAG in utilization percentage ()
RZ3500S・L・H
350A（350A）
80%（60%）
RZ3510S・L・H
350A（250A）
50%（50%）
RZW5000S・L・H
500A（400A）
70%（60%）
