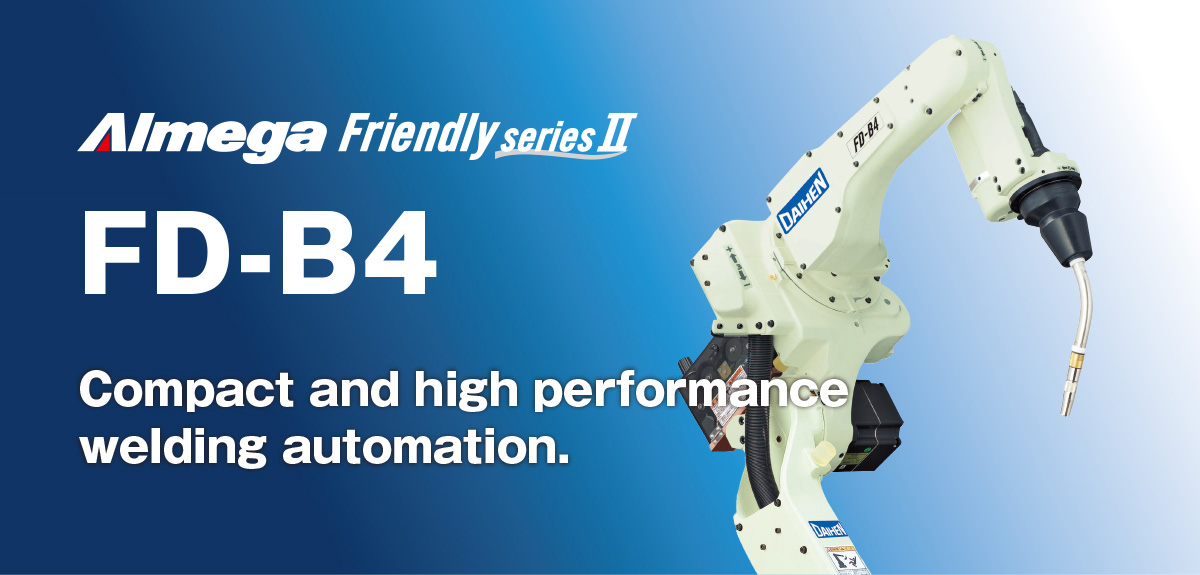

AImega Frendly series FD-B4 Compact and high performance welding automation. AImega Frendly series FD-B4 Compact and high performance welding automation.

Main features

  • Space saving design.

    Space saving
    design with slim, narrow-profile arm.

  • Capable of operation in tight spaces.

    Space saving via reduced rotation area allows operation in tight spaces.

  • Built-in cabling.

    Built-in cabling prevents snags during operation.

Video

  • Video

    Transformer casing automatic welding system

Specifications

Item
Specifications
Model name
NB4
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
4kg
Weight
154kg
Load of Upper Arm
10kg(*)

(Note) The end effect is when the maximum payload capacity is loaded.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
