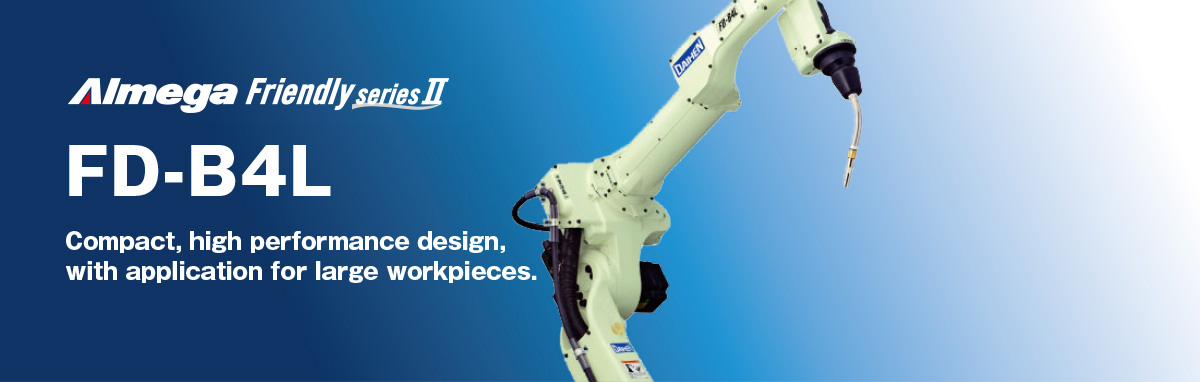

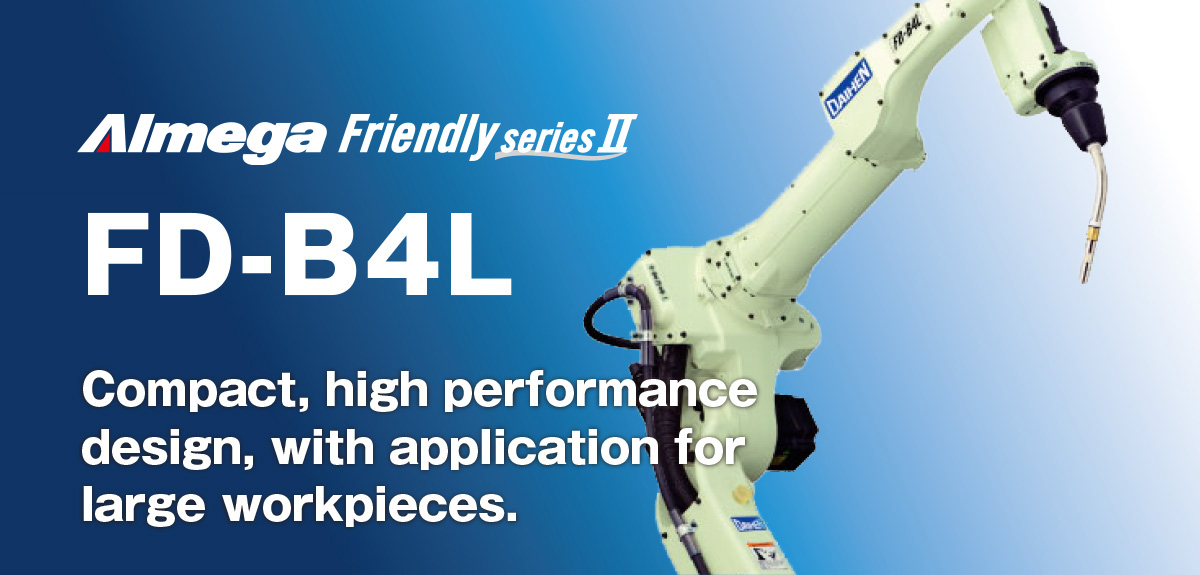

AImega Frendly series FD-B4L Compact, high performance design, with application for large workpieces. AImega Frendly series FD-B4L Compact, high performance design, with application for large workpieces.

Main features

  • Space saving design.

    Space saving design with slim, narrow-profile arm.

  • Built-in cabling.

    Built-in cabling prevents snags
    during operation.

  • Applicable to a wide range of workpieces.

    Extended reach supports application for a wide range of workpiece sizes.

Specifications

Item
Specifications
Model name
NB4L
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
4kg
Weight
277kg
Load of Upper Arm
20kg(*)

(Note) The end effect is when the maximum payload capacity is loaded.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
