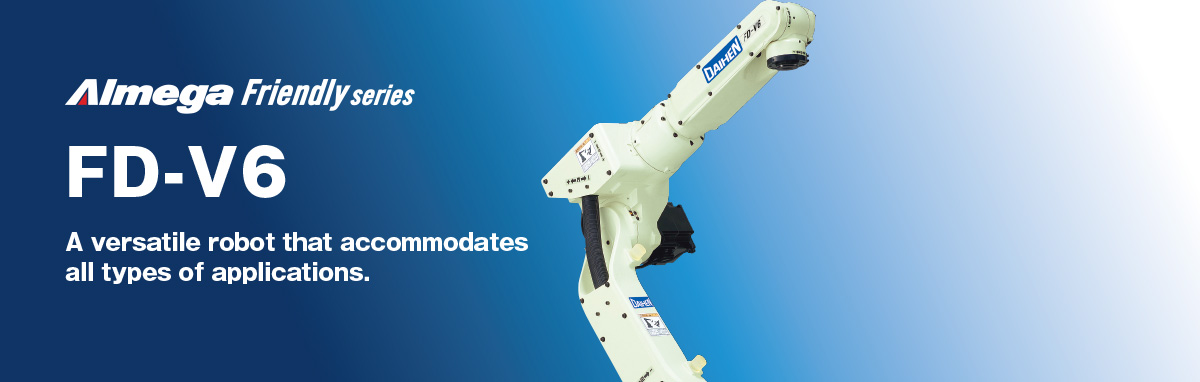

AImega Frendly series FD-V6 A versatile robot that accommodates all types of applications. AImega Frendly series FD-V6 A versatile robot that accommodates all types of applications.

Main features

  • Well suited for all types of welding applications.

    Well suited for all types of welding applications, including CO/MAG, MIG and TIG.

  • Duplicate parts result in less maintenance stock.

    Using the same motor for all the robot models reduces maintenance parts.

  • Capable of operation in tight spaces.

    Smaller mounting footprint and reduced interference zone allows for high-density installation.

Video

  • Video

    Plasma welding system.

  • Video

    Transformer casing automatic welding system

  • Video

    Parts loading/unloading to the pipe bending machine

Specifications

Item
Specifications
Model name
NV6
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
6kg
Weight
144kg
Load of Upper Arm
10kg(*)

(Note) The end effect is when the maximum payload capacity is loaded.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
