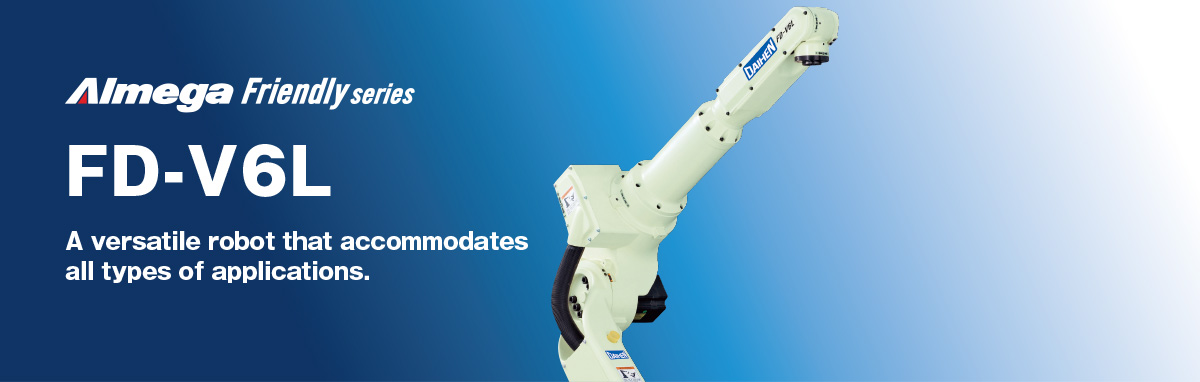

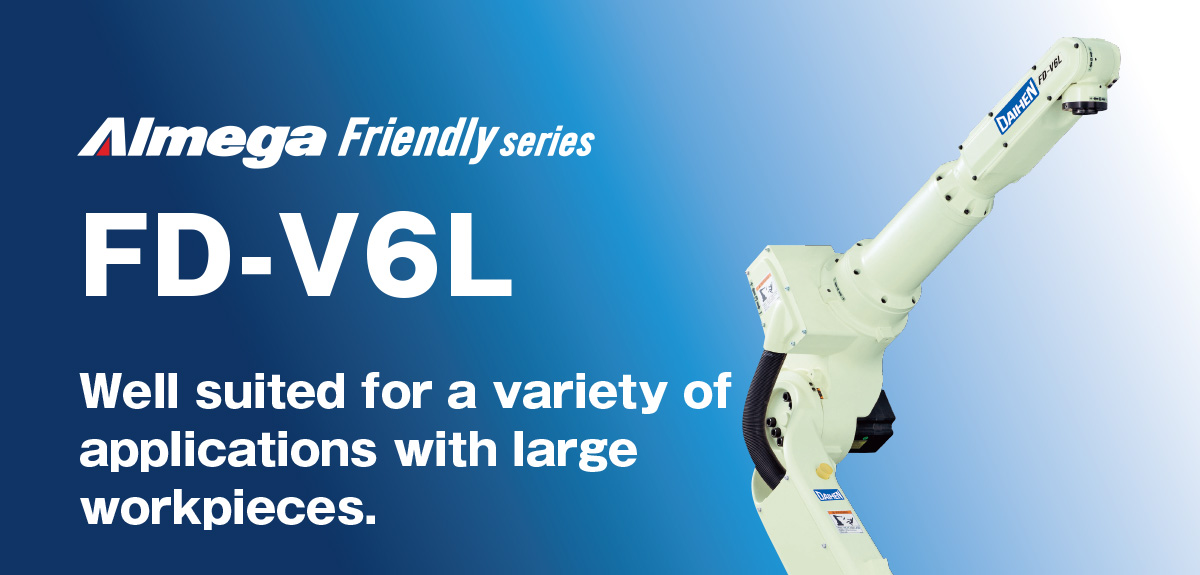

AImega Frendly series FD-V6L Well suited for a variety of applications with large workpieces. AImega Frendly series FD-V6L Well suited for a variety of applications with large workpieces.

Main features

  • Well suited for all types of welding applications.

    Well suited for all types of welding applications, including CO/MAG, MIG and TIG.

  • Duplicate parts result in less maintenance stock.

    Incorporating the same motors across all robot models reduces maintenance part stock.

  • Capable of operation in tight spaces.

    Space saving via reduced rotation area allows operation in tight spaces.

  • Applicable to a wide range of workpieces.

    Extended reach supports application for a wide range of workpiece sizes.

Video

  • Video

    Conveyor robot between presses

Specifications

Item
Specifications
Model name
NV6L
Structure
Vertical articulated type
Number of Axes
6
Wrist payload
6kg
Weight
277kg
Load of Upper Arm
20kg(*)

(Note) The end effect is when the maximum payload capacity is loaded.
These specifications are subject to change without prior notice.

  • Product catalog
  • 2D CAD data
  • 3D CAD data
  • Standard specification sheet

*User registration is necessary to download CAD data.
Be advised that the registration ID of anyone from another company in the same industry may be deleted without notice.
