フAImega Frendly series Plasma cutting robot package Automation of high-quality three-dimensional cutting is realized, and it is possible to cope with a wide variety of workpieces AImega Frendly series Plasma cutting robot package Automation of high-quality three-dimensional cutting is realized, and it is possible to cope with a wide variety of workpieces

Main features

  • Automatic torch height adjustment for high-quality cutting
  • Applicable to various 3-D workpieces such as head plates
  • Sets the cutting conditions on the robotic TP at once.
Automatic torch height adjustment to reduce workpiece distortion
and misalignment

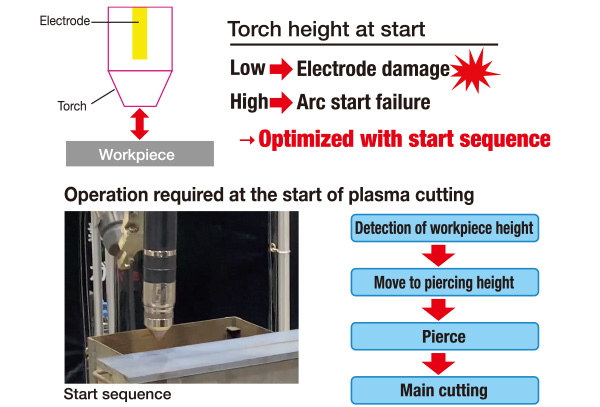

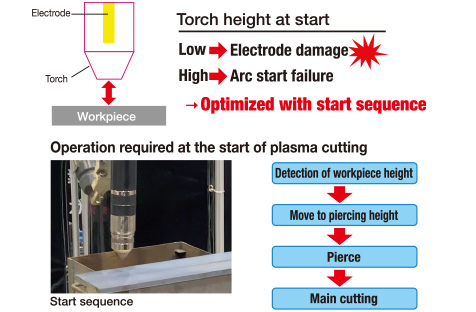

Start sequence function

*Depends on cutting
conditions.
Automatic generation of "Operation required when plasma cutting starts".
→Improved consumable life and reduced occasionally stoppage during piercing
Start sequence function Start sequence function

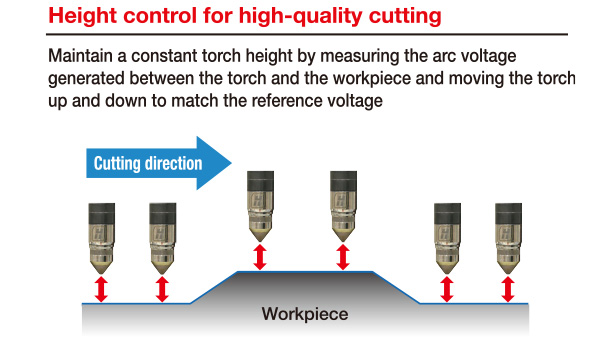

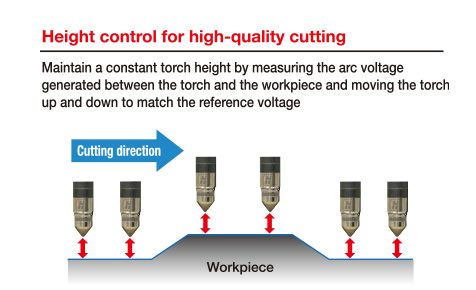

Height control
*Depends on cutting conditions.
Keep height constant during cutting
→The quality of the cut surface is maintained even if the workpiece surface is distorted. Executes voltage copying without requiring a post-installed sensor
Height control Height control

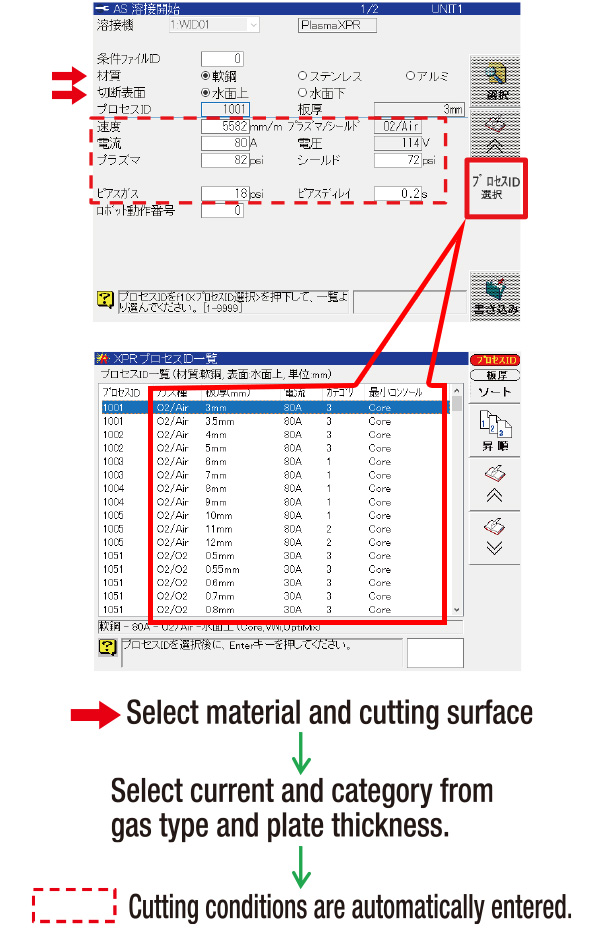

Sets the cutting conditions
on the robotic TP at once.
AS/AE instruction
for plasma cutting
• Eliminates complicated settings for plasma cutting conditions.
• The cutting conditions are automatically entered by simply selecting the current and category from the combination of material, cutting surface, gas type and plate thickness at the plasma cutting start command.
AS/AE instruction for plasma cutting AS/AE instruction for plasma cutting

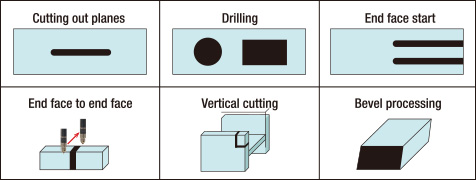

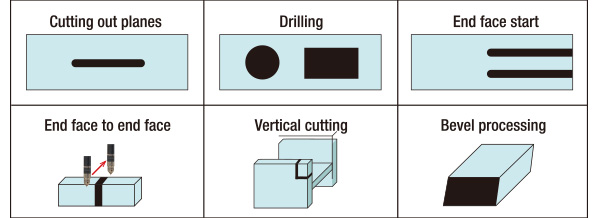

Workpiece cutting geometry
Workpiece cutting geometry Workpiece cutting geometry

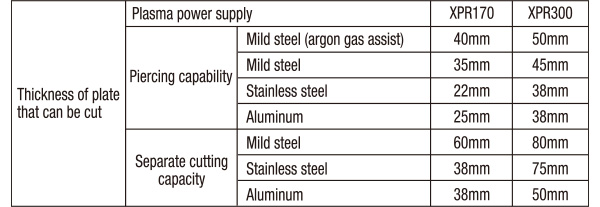

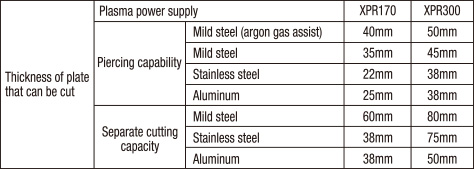

Thickness of plate that can be cut
Thickness of plate that can be cut Thickness of plate that can be cut
